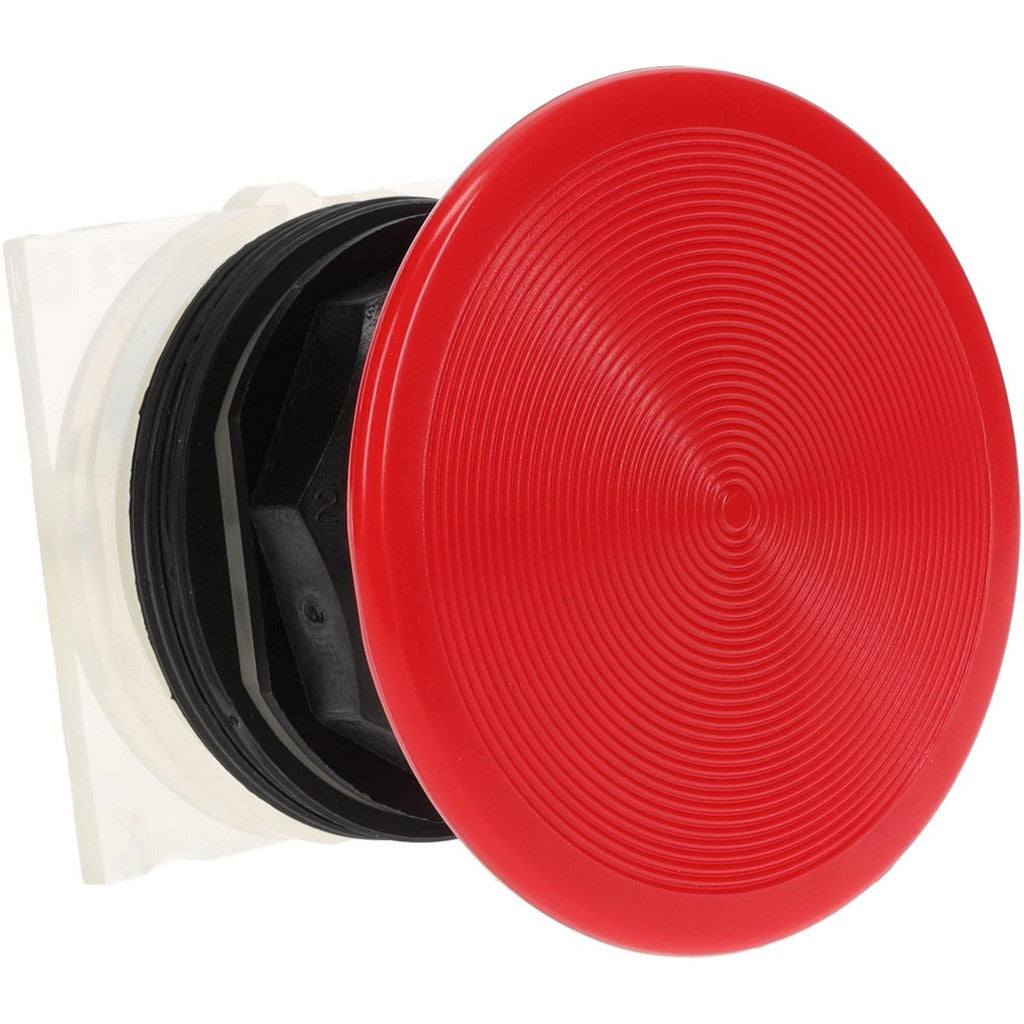

Schneider Electric 9001SKR5R Push-button Switch 30mm Momentary Red

Product Description

The SCHNEIDER ELECTRIC 9001SKR5R is a momentary push-button switch operator designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter, a red extended straight push-button operator, and momentary (MO) action, meaning the contact state changes only while the button is depressed and returns to its normal state upon release. The unit carries NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13, making it suitable for environments ranging from general-purpose indoor use to watertight and corrosion-resistant enclosures. Electricians and control panel technicians are the primary installers of this device.

This push-button switch operator fits 30 mm panel cutouts and is used in a wide range of industrial control, HVAC, pump, and machinery applications where a momentary start, stop, or jog function is required. The red color convention is commonly used to indicate stop or emergency functions on control panels, though the operator can be wired to any control circuit function. It is suited for both light commercial and heavy industrial environments given its broad NEMA enclosure rating coverage. The compact package ships as a single unit, appropriate for individual panel builds or replacement service calls.

Key Features

• 30 mm mounting hole diameter for standard industrial panel cutout compatibility
• Momentary (MO) operation — contact active only while button is held
• Extended straight push-button profile for positive tactile actuation
• Red operator color for visual identification on control panels
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for broad environmental suitability including watertight and corrosion-resistant enclosures

Compatibility

Designed as an OEM-style operator for 30 mm push-button control stations and panel-mount switch assemblies. Specific contact block and legend plate compatibility should be verified against the 9001SK series component lineup or the manufacturer product documentation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local codes. De-energize the control panel completely before removing or installing switch operators. Verify that the mounting hole diameter is 30 mm before installation, and confirm that any contact blocks or accessories are rated for the same NEMA enclosure class as the application requires. Do not exceed the rated electrical parameters of the associated contact blocks used with this operator.
