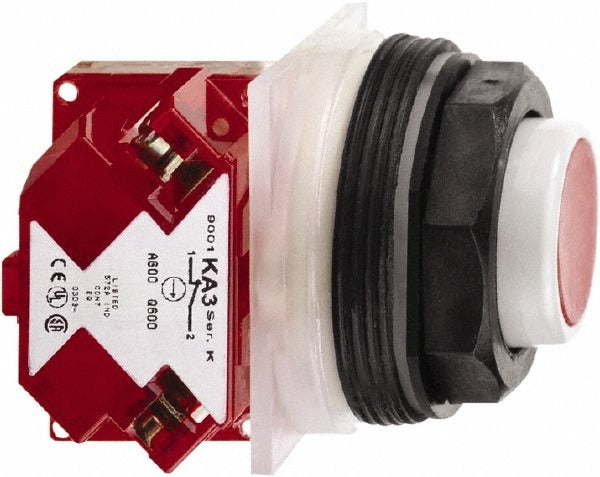

Schneider Electric 9001SKR3RH6 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001SKR3RH6 is a momentary push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter, a red octagon-shaped extended straight push button, and a normally closed (NC) contact configuration rated at 600 volts AC and 10 amps. The plastic button body is built to NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 ratings, making it suitable for both indoor and outdoor enclosures including oil-tight and watertight applications. Electricians and industrial controls technicians install this switch in machine control panels, motor control circuits, and industrial equipment requiring a momentary NC switching function.

This push-button switch is used in residential, commercial, and industrial control panel builds where a momentary normally closed circuit interruption is required. Typical install scenarios include emergency stop circuits, motor control stations, and operator interface panels. The red button color is conventionally used to indicate stop or off functions in industrial control wiring. The extended button profile provides positive tactile feedback and is suitable for gloved-hand operation in light industrial environments.

Key Features

• Momentary NC contact configuration suitable for stop and safety interlock circuits
• Red octagon extended straight push button for clear visual identification
• 600V AC rating at 10 amps for robust industrial control circuit performance
• NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 enclosure ratings for versatile installation environments
• 30 mm mounting hole diameter fits standard industrial control panel cutouts
• Meets CSA, UL 508, EN/IEC 60947, and JIS standards for broad compliance

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for standard 30 mm industrial control panel cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before installation per NFPA 70E lockout/tagout procedures. Verify that the panel enclosure NEMA rating matches or exceeds the environmental requirements of the installation location. Do not exceed the rated voltage or amperage of the switch contact.
