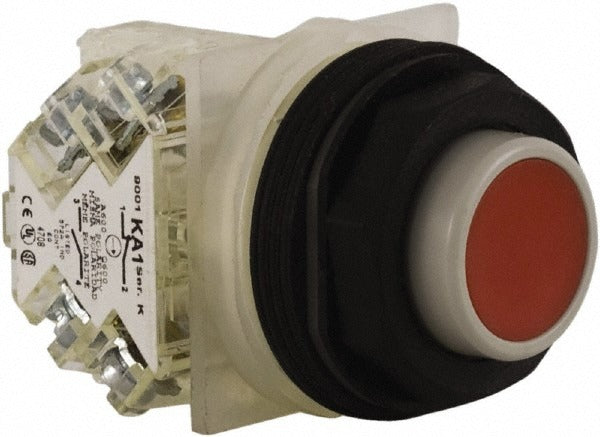

Schneider Electric 9001SKR3RH13 Push-button Switch 30mm

Product Description

The SCHNEIDER ELECTRIC 9001SKR3RH13 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel and machine operator interface applications. It features a 30 mm mounting hole diameter, a red extended (straight) push button, and a combined NC/NO contact configuration. Licensed electricians and industrial controls technicians install this switch in enclosures requiring a momentary actuation signal for start, stop, or interlock circuits. The NEMA ratings span a wide range of enclosure types, making this switch suitable for both indoor and outdoor service environments where moisture and contaminant resistance are required.

This switch is used in industrial and commercial control panel builds, OEM machinery, and field retrofit or replacement applications. The momentary operation type means the contacts return to their default state the moment the operator releases the button, making it appropriate for momentary-start or jog circuits. The red color designation follows common convention for stop or emergency-function buttons, though the specific circuit function is determined by the panel designer or applicable wiring diagram. It fits standard 30 mm cutout operator interfaces found across a broad range of control enclosures and panel layouts.

Key Features

• Momentary (MO) operation with combined NC/NO contact configuration for flexible circuit wiring
• 600V AC rating at 10 amps supports a wide range of industrial control voltages
• 30 mm mounting hole diameter fits standard operator interface cutouts
• Red extended (straight) push button provides clear visual identification on control panels
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 ratings cover indoor, outdoor, and wash-down environments

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial control panels and machinery using standard 30 mm operator interface mounting cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing any existing switch or making wiring connections. Verify that the enclosure NEMA rating matches the installation environment before mounting. Confirm contact configuration (NC or NO) against the circuit wiring diagram before energizing.
