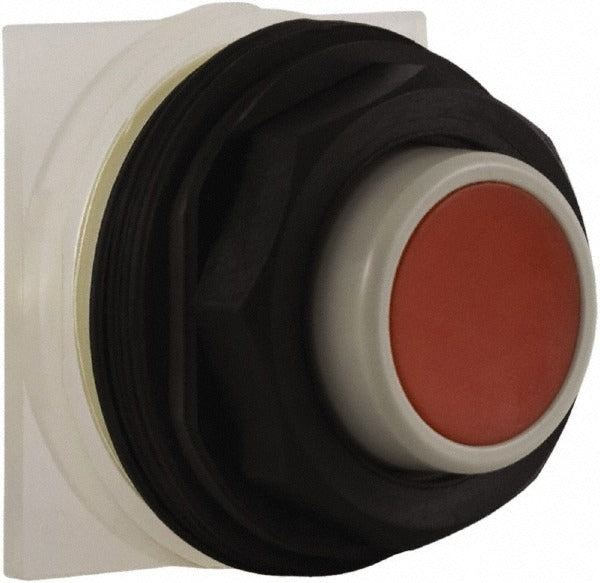

Schneider Electric 9001SKR3R Push-button Switch 30mm Red

Product Description

The SCHNEIDER ELECTRIC 9001SKR3R is a momentary push-button switch operator designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and a red extended (straight) push-button head that returns to its original position the moment pressure is released. The operator carries NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13, making it suitable for a wide range of environmental conditions from general indoor use to washdown and submersion-resistant enclosures. Electricians and panel builders typically install this component as part of motor control, signaling, or machine start-stop circuits.

This push-button operator is used in industrial control panels, motor control centers, and machine operator interfaces in both light commercial and heavy industrial settings. The red color convention commonly identifies stop, emergency, or caution functions in control circuit wiring. The 30 mm mounting footprint is a widely used standard in industrial push-button stations. Its broad NEMA rating coverage makes it a practical choice for indoor panels as well as outdoor or moisture-exposed enclosures.

Key Features

• Momentary (MO) operation — circuit closes only while button is depressed, returns to open state on release
• 30 mm mounting hole diameter — standard industrial push-button panel cutout
• Extended (straight) red push-button head — high-visibility operator, easily identified in multi-button panels
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, 13 rated — covers general, weatherproof, watertight, and oil-tight enclosure types
• Compact form factor — 3.7 x 2.4 x 2 inches overall
• Lightweight construction at 0.1 pounds — minimal load on panel door or enclosure

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 30 mm industrial control stations and enclosures requiring a momentary red extended operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and local electrical codes. De-energize and lock out the panel or enclosure before removing an existing operator or installing this switch. A standard 30 mm punch-out or pre-drilled hole is required in the enclosure door or panel face. Verify enclosure NEMA rating is compatible with the application environment before mounting.
