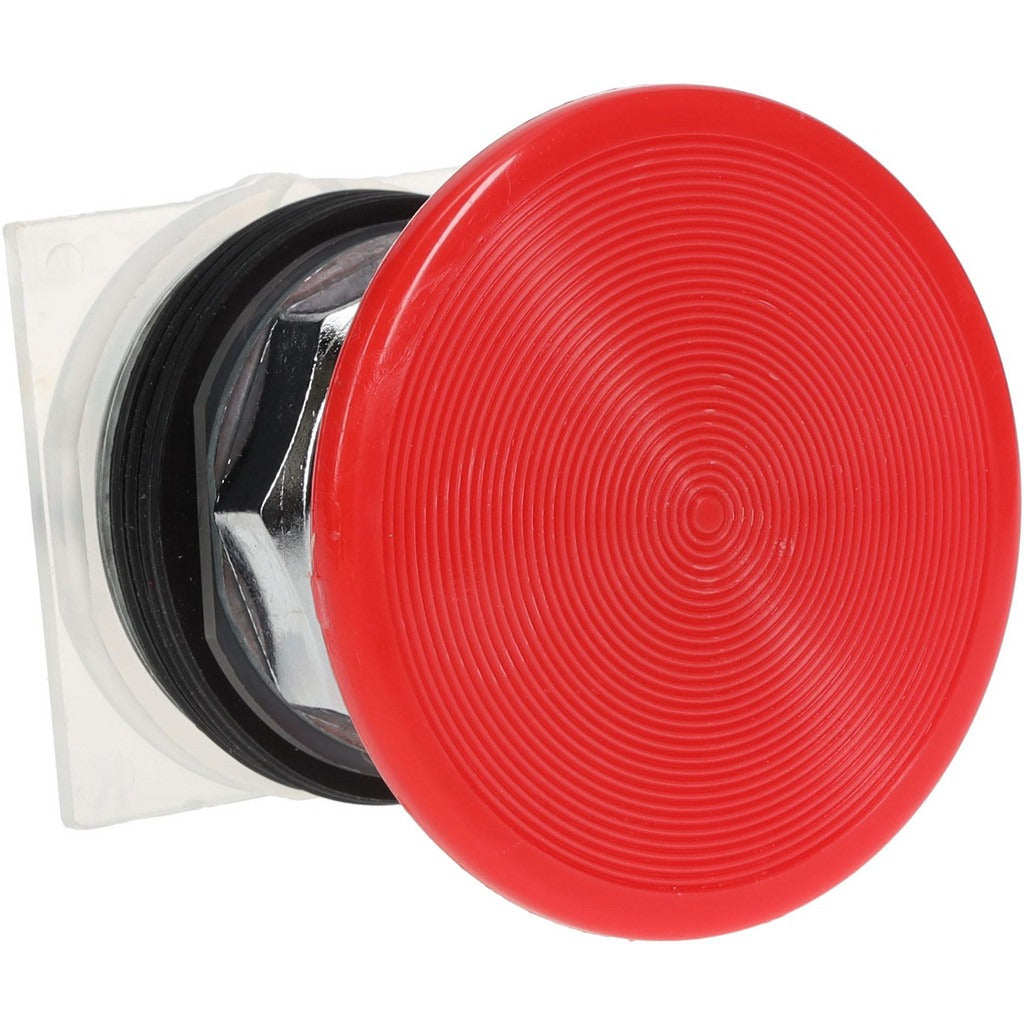

Schneider Electric 9001SKR25R Push-button Switch 30mm Momentary

Product Description

The SCHNEIDER ELECTRIC 9001SKR25R is a momentary push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter, a red extended straight-style button, and a momentary (MO) operation that returns to its default state when released. Rated for NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosures, this switch is built to handle a wide range of indoor and outdoor environments. Licensed electricians and industrial maintenance technicians install this type of switch as part of machine control stations, operator interface panels, and motor control circuits.

This switch is suited for both light commercial and industrial settings where a panel-mount momentary control is required. The extended button profile makes it easy to actuate while wearing gloves, which is common on factory floors and mechanical rooms. It fits into standard 30 mm push-button operator cutouts and is typically wired into low-voltage control circuits on motor starters, PLCs, and relay logic panels. The NEMA 4X rating makes it appropriate for washdown or corrosive environments.

Key Features

• 30 mm mounting hole diameter fits standard industrial control panel cutouts
• Momentary (MO) operation returns to default state upon release
• Extended straight button profile for easy actuation with gloved hands
• Red button color for clear visual identification at the panel
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure ratings

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for standard 30 mm industrial control panel stations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power to the control panel before removing or installing any switch component. The switch body mounts through a 30 mm panel cutout and secures with the provided hardware. Verify contact block compatibility and circuit voltage rating before completing wiring connections.
