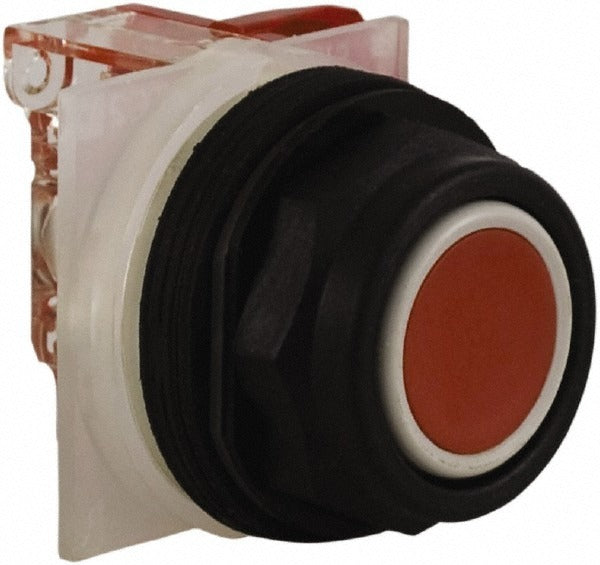

Schneider Electric 9001SKR1RH6 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001SKR1RH6 is a momentary, normally closed (NC) push-button switch designed for industrial control panel applications. It mounts through a 30 mm hole and features a red extended straight push button for clear operator identification. Rated at 600 volts AC and 10 amps, this switch delivers reliable contact performance in demanding electrical control environments. Licensed electricians and industrial maintenance technicians install this type of switch in motor control centers, machine control panels, and related equipment. It carries NEMA ratings covering a wide range of enclosure types, making it suitable for both indoor and outdoor installations.

This switch is suited for use in industrial and commercial control systems where momentary NC contact action is required. Typical applications include emergency stop circuits, machine interlocks, and operator control stations. Its NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 ratings allow installation across a broad range of enclosure environments, from basic indoor panels to watertight and corrosion-resistant enclosures. The red button color provides a standard visual cue for stop or shutoff functions in control panel layouts.

Key Features

• Momentary (MO) operation with normally closed (NC) contact configuration
• Rated 600 volts AC at 10 amps for robust industrial control use
• 30 mm mounting hole diameter for standard industrial panel cutouts
• Red extended straight push button for clear operator identification
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 for versatile enclosure compatibility
• Compact form factor at 3.7 inches long, 2.2 inches tall, and 2 inches wide

Compatibility

Designed as an OEM-style replacement or direct-install push-button switch for industrial control panels requiring a 30 mm momentary NC switch with 600V AC rating.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the control panel before removing or installing the switch. Verify the panel enclosure NEMA rating matches the application environment before mounting. Confirm contact configuration and voltage rating are appropriate for the circuit before restoring power.
