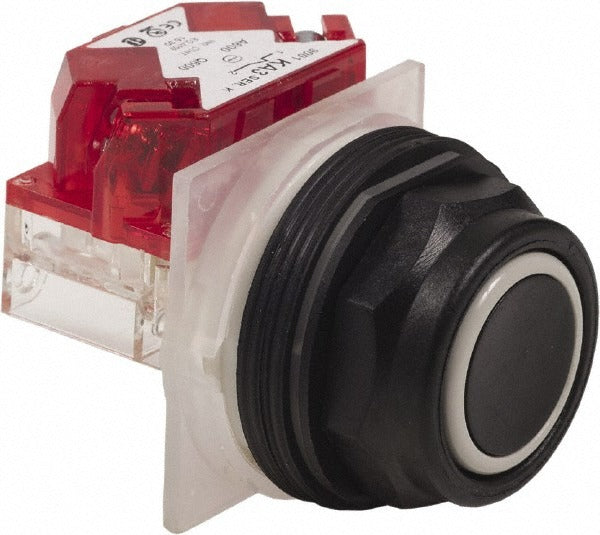

Schneider Electric 9001SKR1BH6 Push-button Switch Nc 600VAC

Product Description

The SCHNEIDER ELECTRIC 9001SKR1BH6 is a momentary push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter, an extended straight black push button, and a normally closed (NC) contact configuration rated at 600 volts AC and 10 amps. The switch carries NEMA ratings covering Types 1, 2, 3, 3R, 4, 4X, 6, 12, and 13, making it suitable for a wide range of environmental conditions from general indoor use to washdown and submersion-resistant enclosures. Licensed electricians and controls technicians are the primary installers of this component.

This push-button switch is used in industrial and commercial control panel assemblies where a momentary NC input is required. Typical applications include motor control centers, machine stop circuits, interlock logic, and operator control stations. The extended straight actuator style provides a positive feel for operators in environments where gloves or heavy-duty PPE are in use. Its broad NEMA rating range means it can be specified across indoor, outdoor, wet, and corrosive-atmosphere enclosures.

Key Features

• 30 mm mounting hole diameter fits standard 30 mm panel cutouts
• Momentary operation with normally closed (NC) contact configuration
• 600 volt AC rating at 10 amps for compatibility with industrial control voltages
• Extended straight black actuator for clear operator identification
• NEMA Types 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for broad environmental suitability

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 30 mm industrial control panel cutouts requiring a momentary NC contact.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before mounting or wiring this switch. Confirm enclosure NEMA rating matches the environmental requirements of the installation location. Do not exceed the 600 VAC and 10 amp contact ratings.
