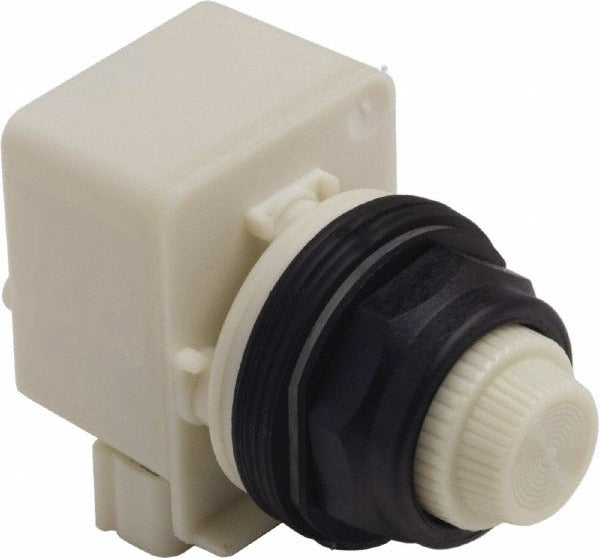

Schneider Electric 9001SKP38LWW31 Led Pilot Light 120V

Product Description

The SCHNEIDER ELECTRIC 9001SKP38LWW31 is a 120-volt LED pilot light designed for industrial and commercial control panel applications. It features a white round lens and a screw clamp connector for secure, reliable wiring termination. The LED lamp type provides long service life and low power draw compared to incandescent alternatives. Built with vibration resistance, this pilot light maintains consistent operation in environments where mechanical stress is a factor. Overall dimensions are 3.7 inches in length, 2.4 inches in width, and 2.0 inches in height. Licensed electricians and panel builders install this device during new construction or retrofit of machine control enclosures and operator interface stations.

This pilot light is suited for use in residential, commercial, and light industrial control panels where a clear visual status indicator is required. It is commonly installed in motor control centers, HVAC control enclosures, pump panels, and similar operator interface assemblies. The screw clamp connector accommodates straightforward field wiring. Its compact form factor and NEMA-rated enclosure compatibility make it a practical fit for a wide range of panel configurations. The white lens provides a neutral indication color appropriate for power-on, ready, or custom-labeled status signals.

Key Features

• 120-volt operating voltage with LED lamp for long service life and low energy draw
• White round lens for clear, neutral status indication
• Screw clamp connector for secure, tool-assisted wiring termination
• Vibration resistant construction for reliable performance in demanding environments
• Compact footprint: 3.7 inches long, 2.4 inches wide, 2.0 inches tall
• Meets multiple standards including UL 508, CSA C22.2 No. 14, NEMA 1/2/3/3R/4/4X/12/13, EN/IEC 60947-5-1, and JIS C 4520

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120-volt industrial and commercial control panel assemblies requiring a NEMA-rated, round-lens LED indicator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize and lock out the control panel before beginning any wiring work. Secure the pilot light in the panel cutout per manufacturer mounting instructions and terminate conductors using appropriate hand tools at the screw clamp connectors. Verify operating voltage matches the circuit supply before restoring power.
