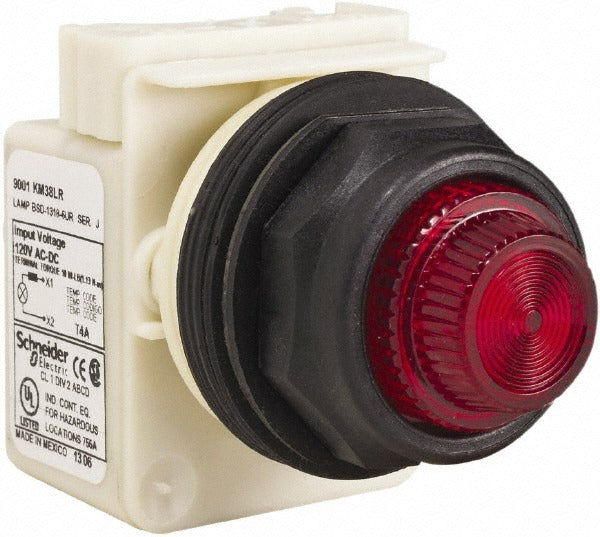

Schneider Electric 9001SKP38LRR31 Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001SKP38LRR31 is a 120-volt LED indicating light with a red round lens, designed for panel-mounted status indication in industrial and commercial control applications. It uses an LED light source for long service life and low power draw compared to incandescent pilot lights. The screw clamp connector simplifies field wiring and termination. Built to resist corrosion, dust, and oil ingress, this unit is rated for demanding environments and carries listings under UL, CSA, CE, and multiple NEMA enclosure ratings. Licensed electricians and panel builders are the typical installers.

This indicating light is suited for use in motor control centers, machine control panels, and industrial automation enclosures where reliable visual status indication is required. The 30mm panel cutout format is a widely used standard in industrial controls. It is rated for NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 environments, making it appropriate for both indoor and outdoor panel applications, including washdown and corrosion-exposed installations. The red lens provides a clear fault or active-status signal to operators and maintenance personnel.

Key Features

• LED lamp type for extended service life and reduced maintenance
• Red round lens for high-visibility status indication
• Screw clamp connector for secure, tool-based field wiring
• Rated NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 for broad environmental coverage
• Corrosion resistant, dust resistant, and oil resistant construction
• Carries UL Listed (File E42259, CCN NKCR), CSA LR25490 Class 3211 03, and CE certifications

Compatibility

Designed as an OEM-style replacement or new-installation LED pilot light for 30mm panel cutout positions in industrial control enclosures and motor control panels rated for 120-volt AC control circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing the indicating light. The screw clamp connector requires a small flathead screwdriver for termination. Verify the panel cutout diameter is 30mm before installation to ensure proper fit and environmental sealing.
