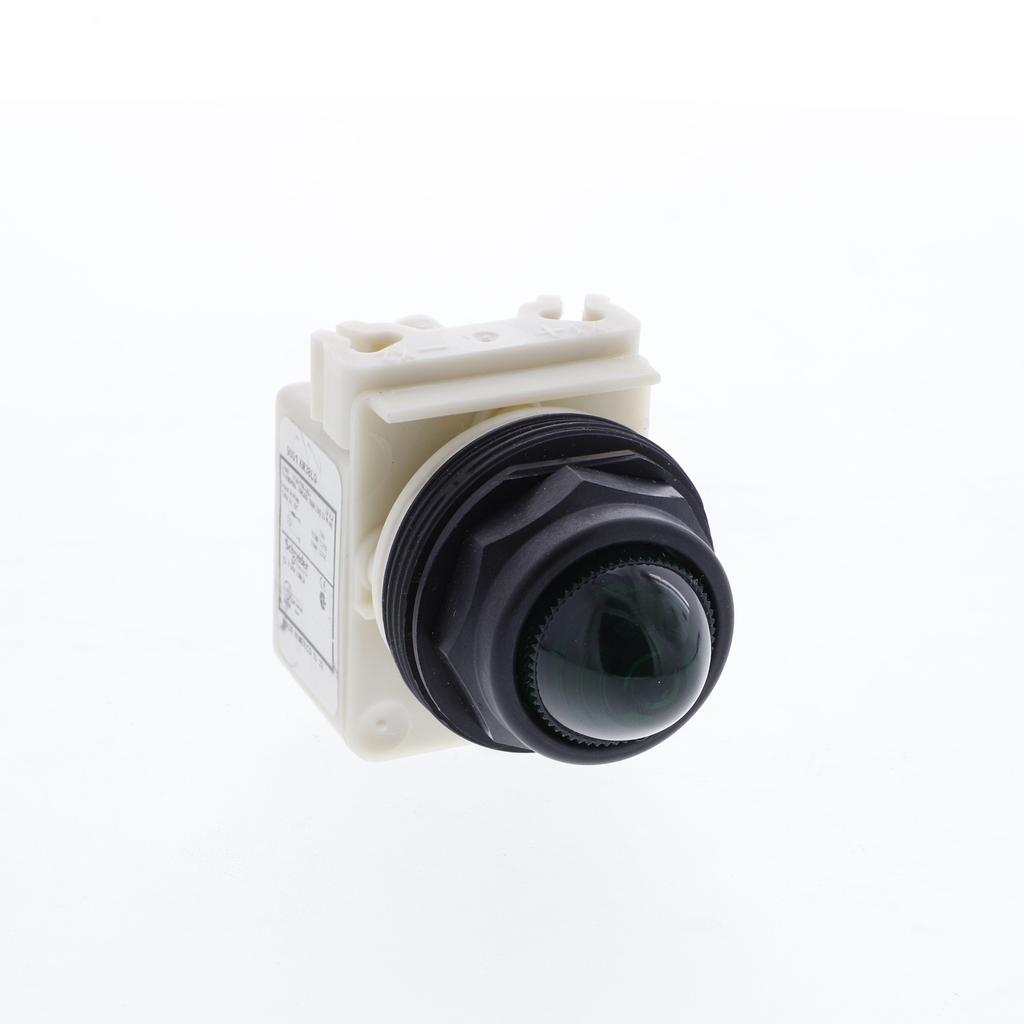

Schneider Electric 9001SKP38LGG9 Square D 30 mm 120 VAC/VDC Green Lens Plastic Bezel LED Standard Octagonal Pilot Light

Product Description

The Schneider Electric 9001SKP38LGG9 is a green LED pilot light with a plastic bezel that operates at 120 volts AC or DC. It features an integral LED light, making it easy to see from a distance. This device is designed for simple installation into standard thirty millimeter diameter panel cutouts and utilizes screw-clamp connections for hassle-free wiring.

• Impact resistant and rated IP66 for harsh environments.
• Easy installation into a standard thirty millimeter diameter cut-out.
• Clear visibility due to the integral LED light, ideal for signaling applications.

Product Highlights

This pilot light is suitable for various signaling applications, providing reliable operation in tough conditions.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square-D / Schneider

Technical Specifications

• Catalog Number: 9001SKP38LGG9
• Voltage: 120 VAC/VDC
• Size: 30 mm
• Light Source: LED
• Height: 70 mm
• Width: 54 mm
• Weight: 0.18 lb
• Operating Temperature: -25 to 70 degrees C
