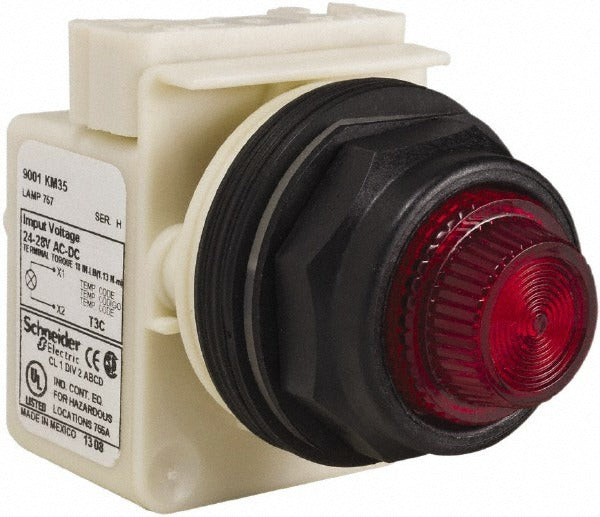

Schneider Electric 9001SKP35R31 Red Indicating Light 24V

Product Description

The SCHNEIDER ELECTRIC 9001SKP35R31 is a red lens indicating light rated for 24 volts and 28 volts AC/DC operation. It features a round lens profile and a screw clamp connector for secure, vibration-resistant termination. Built to handle demanding service environments, this indicator light carries corrosion resistant, dust resistant, and oil resistant ratings. It is a compact panel-mount component installed by electricians and industrial maintenance technicians wherever a reliable pilot light is required on a control panel or machine front-plate. Dimensions are 1.9 inches in height, 2.2 inches in width, and 3.7 inches in length, and the unit weighs 0.18 pounds.

This indicating light is suited for use in residential, commercial, and light industrial control panels operating at 24 volts or 28 volts. Its NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 ratings make it appropriate for indoor dry locations, outdoor weatherproof enclosures, and washdown or submersion-rated applications. The round red lens provides a clear visual status signal for on/off or fault indication in machine control, HVAC, and process control systems.

Key Features

• Dual voltage rating: 24 volts and 28 volts AC/DC
• Red round lens for clear visual indication
• Screw clamp connector for reliable, tool-assisted termination
• Corrosion resistant, dust resistant, and oil resistant construction
• NEMA 4X and 6 ratings suitable for washdown and outdoor enclosures
• UL Listed and CSA certified for broad code compliance

Compatibility

Designed as a replacement-style indicating light for control panels and machinery requiring a 24-volt or 28-volt pilot light with a round lens and screw clamp connector in NEMA-rated enclosures.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the control panel and verify zero voltage with a meter before removing or installing pilot lights. Screw clamp terminals require a small flat-blade screwdriver for proper conductor seating. Ensure the mounting hole cutout and enclosure rating match the application before installation.
