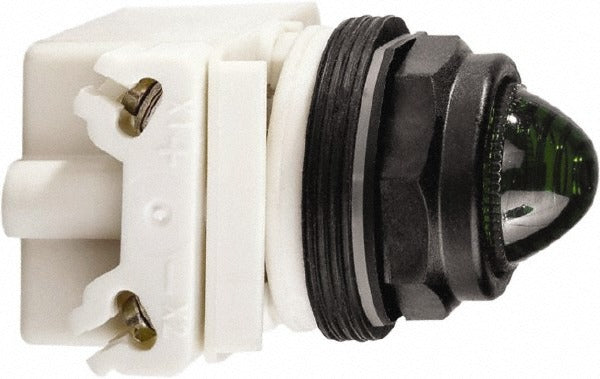

Schneider Electric 9001SKP35LGG9 Led Pilot Light 24V

Product Description

The SCHNEIDER ELECTRIC 9001SKP35LGG9 is a 24 volt AC/DC LED pilot light designed for use in industrial control panels and machine operator interfaces. It features a round green lens and a screw clamp connector for secure, tool-assisted wiring. The LED lamp type provides long service life and low power draw compared to incandescent alternatives. At 3.7 inches in overall length and 2.4 inches wide, this pilot light fits standard panel cutouts and is built to handle continuous-duty environments. Vibration resistance makes it suitable for installations near motors, compressors, and other equipment that generates mechanical stress. Licensed electricians and panel builders are the primary installers.

This pilot light is suited for residential, commercial, and light industrial control panel applications where a clear, reliable status indicator is required. Typical use cases include motor starter panels, pump control enclosures, HVAC equipment panels, and machine control stations. The green lens signals a run, on, or normal-status condition in standard panel wiring conventions. The screw clamp connector accepts standard control wiring and does not require crimped ferrules, simplifying field wiring and maintenance access.

Key Features

• LED lamp type for extended service life and reduced maintenance intervals
• Operates on 24 volts AC or DC control voltage
• Round green lens for standard run or normal-status indication
• Screw clamp connector for reliable, tool-tightened wiring termination
• Vibration resistant construction for use near motors and compressors
• Meets UL 508, CSA C22.2 No. 14, NEMA 1/2/3/3R/4/4X/12/13, and IEC 60947 series standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 24 volt AC/DC industrial control panels requiring a standard round lens LED indicator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC Article 409 for industrial control panels and any applicable local codes. De-energize and lock out the control panel before installing or replacing the pilot light. Tighten screw clamp terminals to the connector manufacturer-specified range using an appropriate flat-blade or Pozidriv screwdriver. Verify control voltage is 24 volts AC or DC before energizing the circuit.
