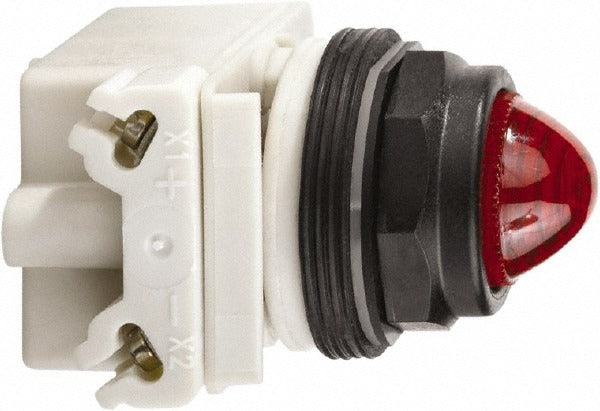

Schneider Electric 9001SKP1R9 Pilot Light 120V Red

Product Description

The SCHNEIDER ELECTRIC 9001SKP1R9 is an incandescent pilot light rated for 120 VAC/VDC operation with a red round lens and screw clamp connector. Designed for panel and machine control applications, this indicator light provides a clear visual status signal for electrical control systems. It measures 3.7 inches in length and 2.4 inches wide with a 2-inch height, making it suitable for standard industrial enclosure cutouts. Built for durability, the unit carries a vibration-resistant construction. Licensed electricians and control panel integrators typically specify this part for new builds and maintenance replacements in industrial and commercial environments.

This pilot light is used in control panels, machine operator interfaces, and industrial enclosures across commercial and industrial settings. The screw clamp connector simplifies field wiring during both new installation and replacement work. Its NEMA 1/2/3/3R/4/4X/12/13 rating makes it suitable for indoor and outdoor enclosures, including wash-down and corrosive-environment applications. It is a practical choice wherever a reliable 120-volt incandescent status indicator is required.

Key Features

• Incandescent lamp type with red round lens for clear visual indication
• Rated 120 VAC/VDC for broad compatibility with standard North American control voltage
• Screw clamp connector for secure, tool-assisted field wiring
• Vibration-resistant construction for use in demanding industrial environments
• NEMA 1/2/3/3R/4/4X/12/13 rated for a wide range of enclosure types
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style replacement or new-installation incandescent pilot light for industrial and commercial control panels requiring a 120 VAC/VDC round-lens indicator with screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize the control panel and verify absence of voltage before removing or installing any pilot light. The screw clamp connector requires a small flat-blade screwdriver for proper termination. Confirm the panel enclosure NEMA rating is appropriate for the installation environment before mounting.
