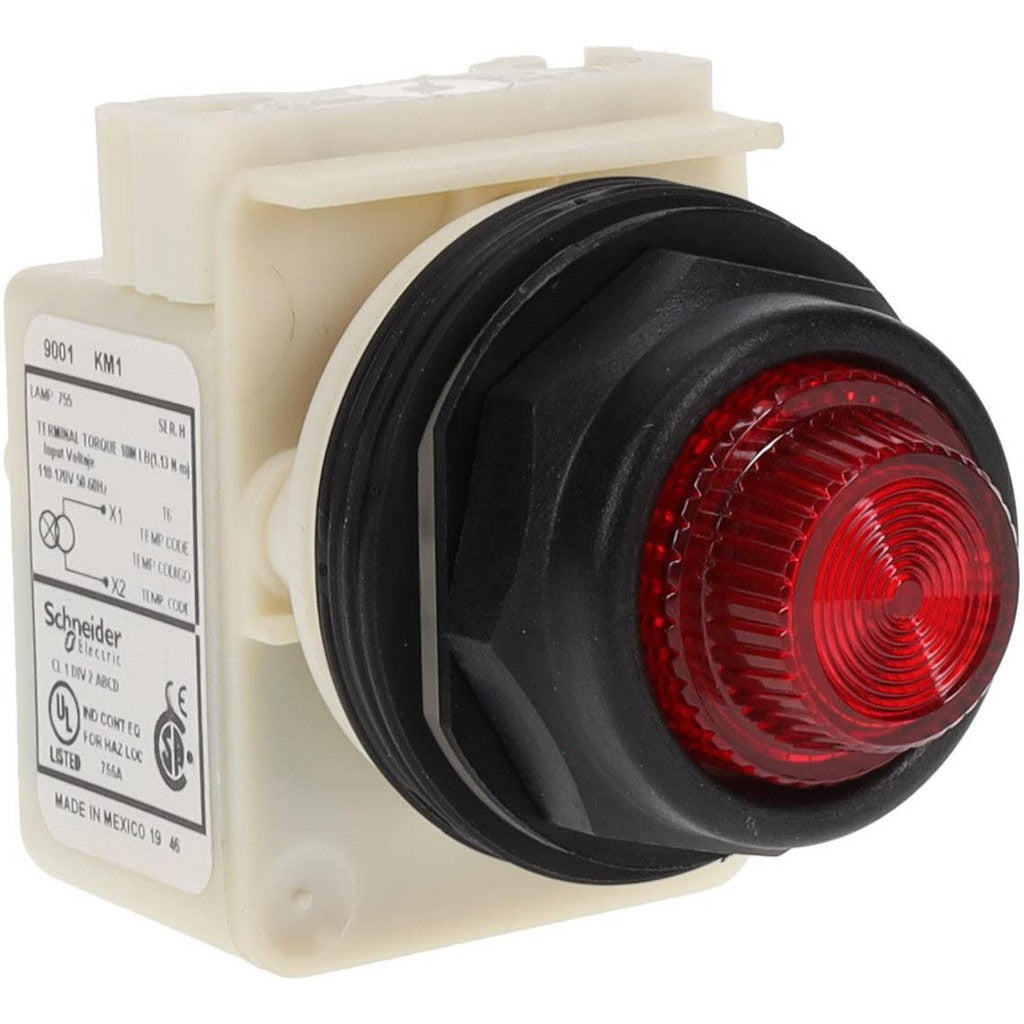

Schneider Electric 9001SKP1R31 Indicating Light Red

Product Description

The SCHNEIDER ELECTRIC 9001SKP1R31 is a red lens indicating light designed for panel-mount status indication in industrial and commercial control applications. Operating at 110 VAC or 120 VAC at 50/60 Hz via transformer, this pilot light uses a screw clamp connector for reliable, tool-assisted termination. It fits a standard 30mm panel cutout and is rated for demanding environments, carrying NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure ratings. Licensed electricians and controls technicians install this type of indicator on motor control centers, machine panels, and distribution boards where clear visual status feedback is required.

The 9001SKP1R31 is suited for residential, commercial, and light industrial control panels where a transformer-powered pilot light with a 30mm form factor is specified. It is appropriate for new panel builds and direct replacement of worn or failed indicating lights on existing equipment. The round red lens provides a clear visual signal for power-on, fault, or run-status indication depending on the circuit it monitors.

Key Features

• Red round lens for clear visual status indication
• 110 VAC and 120 VAC at 50/60 Hz operation via transformer
• Screw clamp connector for secure, code-compliant termination
• 30mm panel cutout — standard size for broad panel compatibility
• Corrosion resistant, dust resistant, and oil resistant construction
• NEMA 4X and 4 ratings suitable for wash-down and outdoor-rated enclosures
• UL Listed (File E42259, CCN NKCR) and CSA certified (LR25490 Class 3211 03)

Compatibility

Designed as an OEM-style replacement or new-install indicating light for industrial and commercial control panels requiring a standard 30mm panel cutout pilot light with transformer-based AC input.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the panel and verify absence of voltage before installing or replacing the indicating light. Secure the screw clamp connections firmly to prevent loose terminations under vibration. Confirm the transformer input voltage matches the supply voltage before energizing the circuit.
