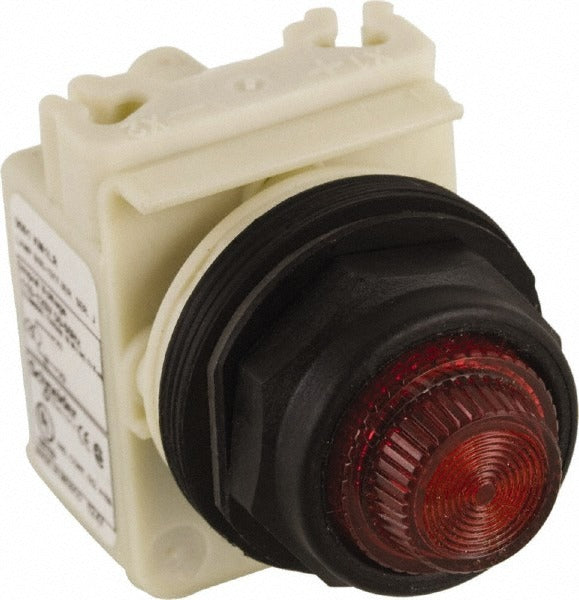

Schneider Electric 9001SKP1LRR31 Led Pilot Light 120V Red

Product Description

The SCHNEIDER ELECTRIC 9001SKP1LRR31 is a 120-volt AC LED pilot light designed for panel and control station applications in industrial and commercial environments. It features a round red lens and a screw clamp connector for reliable, tool-assisted termination. The LED lamp type offers long service life and low power draw compared to incandescent alternatives. At 3.7 inches in overall length and 2.4 inches wide, this unit fits standard 30mm operator cutouts and is built to resist vibration in demanding service conditions. Licensed electricians and industrial control panel builders are the primary installers of this device.

This pilot light is suited for use in control panels, machinery enclosures, and automation equipment where a 120 VAC status indicator is required. The vibration-resistant construction makes it appropriate for machine-tool, pump, and compressor panel applications where mechanical shock and vibration are present. The screw clamp connector simplifies field wiring and reduces the risk of loose terminations over time. It is rated for NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 enclosure types, covering a wide range of indoor and outdoor installation environments.

Key Features

• 120 VAC operating voltage with LED lamp for extended service life
• Round red lens for clear visual status indication
• Screw clamp connector for secure, tool-assisted field wiring
• Vibration-resistant construction for machine and industrial panel use
• NEMA 1/2/3/3R/4/4X/12/13 rated for versatile enclosure compatibility
• Meets UL 508, CSA C22.2 No. 14, and IEC 60947 series standards

Compatibility

Designed as an OEM-style replacement or new-installation LED pilot light for 30mm control station and panel cutouts requiring a 120 VAC input in NEMA-rated enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before mounting or wiring this pilot light. The screw clamp connector requires a small flat-blade screwdriver for termination. Verify that the supply voltage matches the 120 VAC rating of the device before energizing the circuit.
