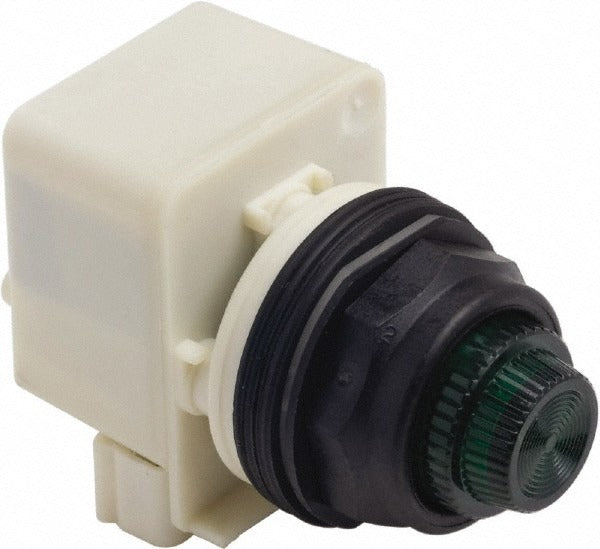

Schneider Electric 9001SKP1LGG31 Led Pilot Light 120V Green

Product Description

The SCHNEIDER ELECTRIC 9001SKP1LGG31 is a 120-volt AC LED pilot light with a green round lens, designed for panel-mount status indication in industrial and commercial control applications. The LED lamp type offers long service life and low power draw compared to incandescent alternatives. Measuring 3.7 inches in length, 2.4 inches in width, and 2 inches in height, this unit fits standard 30mm panel cutout configurations typical in motor control centers, switchgear, and operator interface panels. Electricians and controls technicians install this indicator to provide clear visual confirmation of circuit status, equipment run state, or system power presence.

This pilot light is suited for use in industrial control panels, machine tool enclosures, HVAC equipment control cabinets, and similar low-voltage 120-volt AC indicator circuits. The green lens color conventionally signals an on, run, or normal-status condition, making it a standard choice for operator interface stations and control panel assemblies in both residential and light commercial mechanical systems. It ships as a single unit and is sold individually.

Key Features

• LED lamp type provides extended service life versus incandescent pilot lights
• 120-volt AC rated for direct connection to standard control circuit voltage
• Green round lens for run or normal-status indication
• Compact form factor: 3.7 inches long, 2.4 inches wide, 2 inches tall
• Lightweight at 0.5 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement pilot light for 120-volt AC industrial control panels and operator interface stations requiring a standard round-lens LED indicator.

Installation Notes

Installation is performed by a licensed electrician or qualified controls technician. De-energize and lock out the control panel per NFPA 70E safe work practices before removing the existing indicator or making wiring connections. Verify panel cutout dimensions match the pilot light body before mounting. Follow applicable NEC requirements for control circuit wiring and panel construction.
