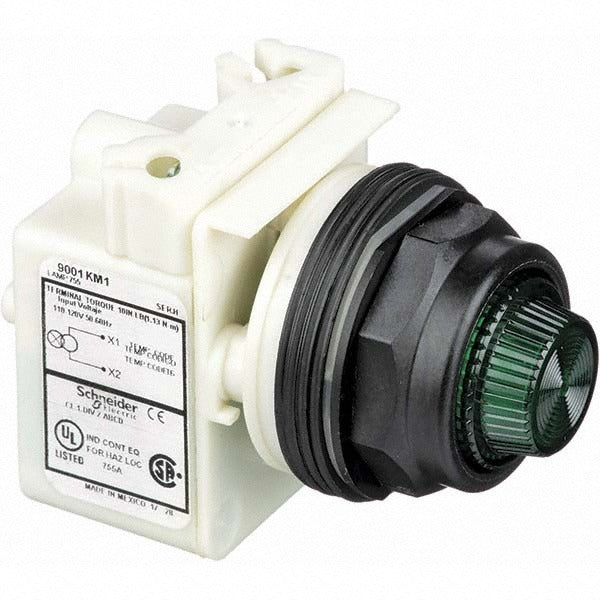

Schneider Electric 9001SKP1G31 Green Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001SKP1G31 is a green-lens indicating light designed for use in industrial control panels and electrical enclosures. Rated for 110 VAC and 120 VAC at 50/60 Hz via transformer, this pilot light delivers a clear visual status signal for machinery, process equipment, and control systems. The round lens and screw clamp connector make installation straightforward and reliable. Built to resist corrosion, dust, and oil, it holds up in demanding service environments where standard panel components would degrade. Licensed electricians and control panel technicians are the typical installers for this type of device.

This indicating light is suited for industrial and commercial electrical control applications where NEMA-rated enclosure protection is required. Its ratings span NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13, making it appropriate for both indoor dry locations and outdoor or wash-down environments. The transformer-driven voltage input allows it to work within standard low-voltage control circuits. It is packaged individually and sold in single-unit quantities.

Key Features

• Green round lens for clear visual status indication in control panels
• Rated for 110 VAC and 120 VAC at 50/60 Hz via transformer input
• Screw clamp connector for secure, tool-assisted wiring termination
• Corrosion resistant, dust resistant, and oil resistant construction
• NEMA 1/2/3/3R/4/4X/6/12/13 rated for broad enclosure compatibility
• UL Listed and CSA certified for North American installations

Compatibility

Designed as an OEM-style replacement or new-installation indicating light for industrial control panels and electrical enclosures requiring a transformer-driven, NEMA-rated pilot light with a round green lens and screw clamp termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before mounting or wiring this indicating light. Use appropriate hand tools to secure the screw clamp connector terminals and verify torque is adequate to prevent loose connections. Confirm the supply voltage and transformer configuration match the rated input before restoring power.
