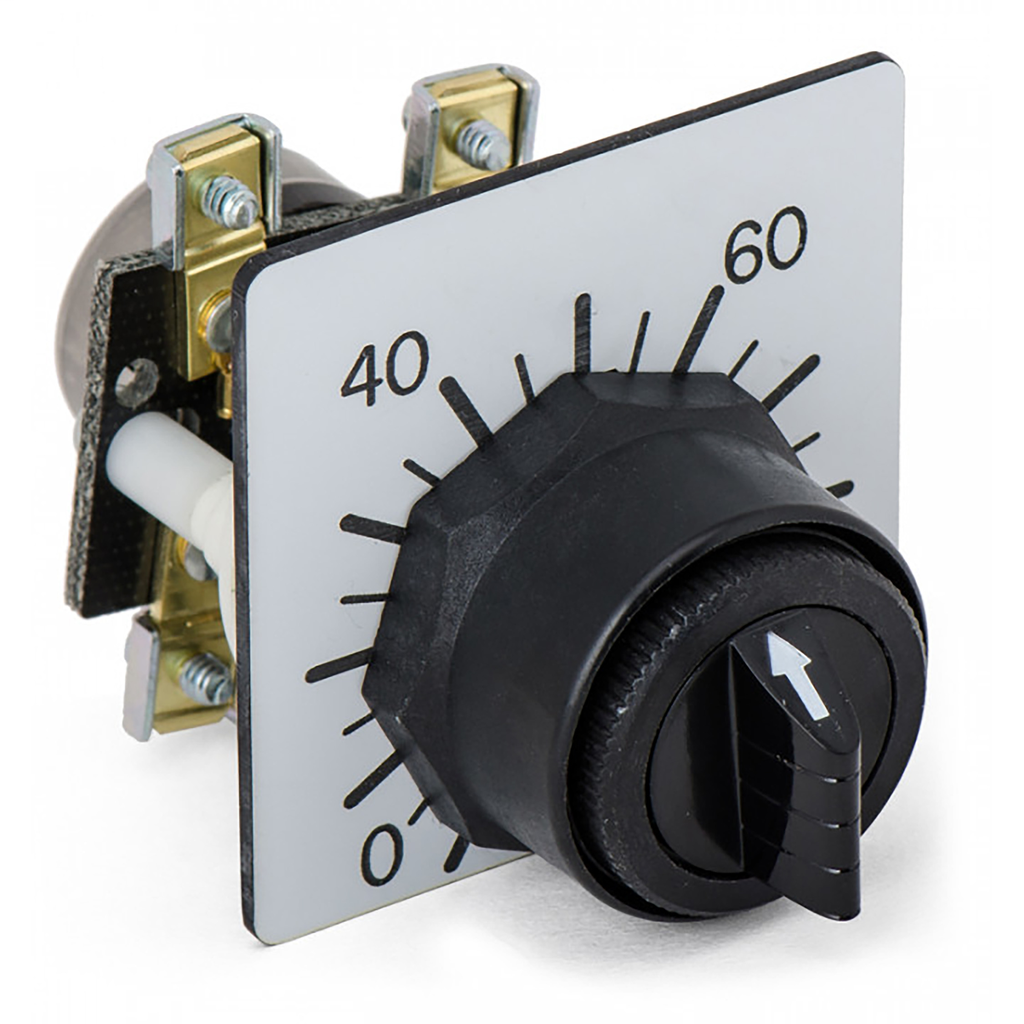

Schneider Electric 9001SK2108 Square D 300 Volt 2 W 10 Kilo Ohm NEMA 4/13 30 mm Push Button Potentiometer

Product Description

This Schneider Electric 9001SK2108 is a push button potentiometer designed for various industrial applications. This model operates at a power rating of 2 Watts with a resistance of 10 Kilo Ohms and can handle a maximum voltage of 300 Volts AC. The potentiometer features solder terminals for reliable electrical connections. It is rated NEMA 4/13, ensuring resistance to dust and water ingress.

• Dimensions are 42 millimeters in width and 89 millimeters in depth.
• Designed for installation in panel cutouts ranging from one-sixteenth of an inch to three-sixteenths of an inch in diameter.
• Applications include automotive, mining, oil and gas, petrochemical, wastewater treatment, metallurgy, and other industrial environments.

Product Highlights

This potentiometer is part of the Harmony 9001SK series, engineered for durability and corrosion resistance. Each unit comes with a metal legend plate and is pre-assembled with an operator and dial plate.

Product Information

Standard Information

• Catalog Number: 9001SK2108
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 300 VAC
• Enclosure: NEMA 4/13
• Sub Brand: Harmony
• Product UPC: 785901040606
• GTIN: 00785901040606
• Warranty Length: 18 months
• Country of Origin: Mexico
• RoHS URL: RoHS Compliance
