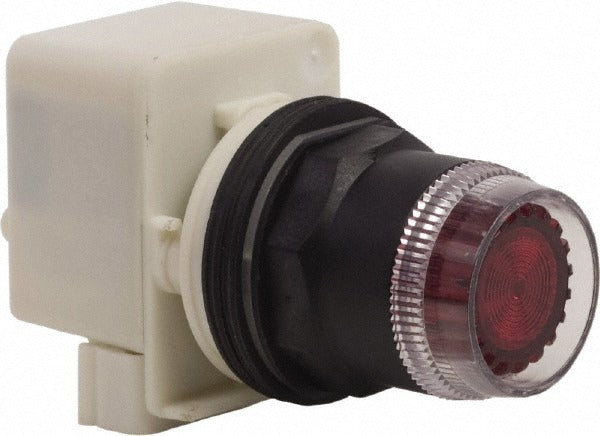

Schneider Electric 9001SK1L1R Push-button Switch Red Momentary

Product Description

The SCHNEIDER ELECTRIC 9001SK1L1R is a 30 mm momentary push-button switch designed for industrial and commercial control panel applications. It features an extended straight push button in red, providing clear visual identification for operators. The momentary (MO) operation type means the switch activates only while depressed and returns to its default state upon release. Rated for NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure types, this switch is built to handle a wide range of environmental conditions including dust, oil, and water ingress. Electricians and control panel technicians install this switch in machine control stations, operator panels, and industrial equipment.

This push-button switch is suited for use in both light-duty commercial and heavy-duty industrial environments. The 30 mm mounting hole diameter is a widely used standard in control panel construction, making it compatible with common enclosure cutout configurations. Its NEMA 4X rating makes it appropriate for applications requiring corrosion resistance and wash-down protection. Typical installations include motor starters, conveyor controls, pump stations, and process control panels where a momentary contact input is required.

Key Features

• 30 mm mounting hole diameter fits standard industrial control panel cutouts
• Momentary (MO) operation returns switch to default state when released
• Extended straight push button in red for high-visibility operator identification
• NEMA 4X rated for corrosion resistance and protection against water ingress
• Also rated NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 for broad environmental coverage

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 30 mm standard industrial control panels and operator stations requiring a momentary red extended push button.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing any switch components. The 30 mm mounting hole should be clean and free of burrs before inserting the switch body. Verify enclosure NEMA rating compatibility with the installation environment before final assembly.
