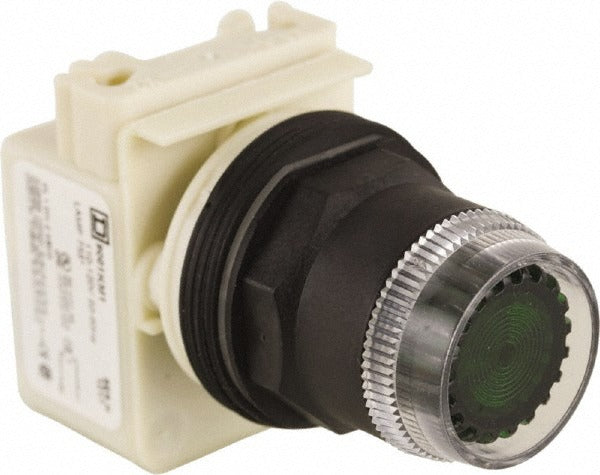

Schneider Electric 9001SK1L1G Push-button Switch 30mm

Product Description

The SCHNEIDER ELECTRIC 9001SK1L1G is a momentary push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter and an extended straight actuator in green, making it suitable for start, jog, or signal functions in machine and process control wiring. The momentary (MO) operation means the switch activates only while pressed and returns to its default state on release. With NEMA ratings covering Types 1, 2, 3, 3R, 4, 4X, 6, 12, and 13, this switch is built to perform in environments ranging from general-purpose indoor panels to watertight and corrosion-resistant enclosures. Licensed electricians and industrial control technicians are the typical installers.

This push-button switch fits standard 30 mm cutout control stations and enclosure doors. It is used in industrial and commercial electrical control systems where momentary switching is required for motor starters, signaling circuits, or operator interface panels. The green color conventionally indicates a start or run function in control panel wiring. The extended actuator style provides a positive tactile feel and clear operator engagement. It is sold individually and is appropriate for both new panel builds and field replacements of worn or damaged push-button operators.

Key Features

• 30 mm mounting hole diameter fits standard industrial control panel cutouts
• Momentary (MO) operation — active only while pressed, spring-return on release
• Extended straight actuator for positive operator engagement
• Green push-button color — conventional start or run designation
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 for broad environmental coverage
• Sold as a single unit — direct field replacement or new panel installation

Compatibility

Designed as an OEM-style replacement or new-installation component for industrial control panels and enclosures equipped with standard 30 mm push-button mounting cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify zero voltage before removing any existing operator or making wiring connections. Ensure the panel enclosure NEMA rating matches the environmental demands of the installation location. Do not force the actuator body into an undersized cutout — confirm the 30 mm hole diameter before mounting.
