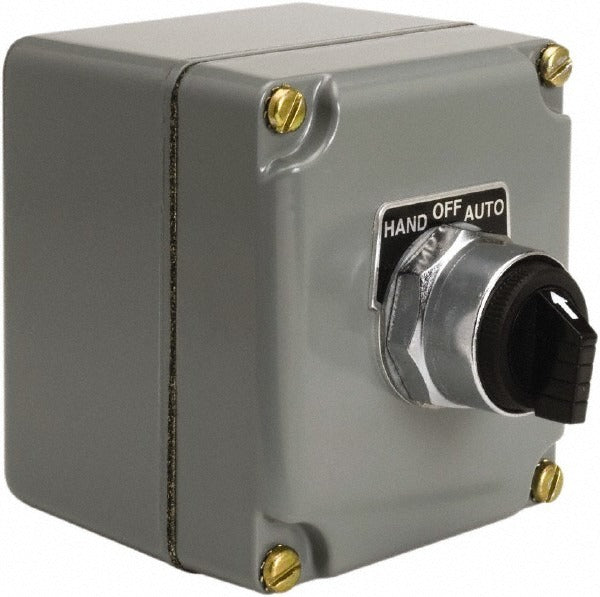

Schneider Electric 9001KYK111 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC 9001KYK111 is a maintained-contact push-button control station configured with a normally open (NO) contact and a three-position legend marked Auto, Hand, and Off. It features a projecting push button operator and is designed for surface-mount installation in industrial and commercial control applications. Rated for NEMA 13, 3, and 4 enclosure environments, this station is built to handle exposure to dust, oil, and water ingress. The unit ships as a single operator configuration and is installed by licensed electricians or qualified control technicians on motor control and equipment automation panels.

This control station is suited for use in commercial and industrial settings where operators need local manual control of motors, pumps, fans, or other driven equipment. The Auto-Hand-Off legend makes it a common choice for HVAC systems, pump control panels, and process equipment where switching between automatic and manual operation modes is required. The maintained switch action ensures the selected position holds without continuous operator input, which is standard for these control applications.

Key Features

• Maintained-contact switch action holds selected position without continuous operator pressure
• Normally open (NO) contact configuration standard for motor and equipment control circuits
• Auto, Hand, Off legend markings for clear operator identification in multi-mode control panels
• Projecting push button operator for positive tactile operation
• NEMA 13, 3, and 4 rated for resistance to dust, oil, and water ingress
• Surface-mount design for straightforward panel or enclosure installation

Compatibility

Designed as an OEM-style replacement or new-installation surface-mount push-button control station suitable for industrial motor control and equipment automation panel applications requiring NEMA 13, 3, and 4 environmental ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out all circuits feeding the control panel before mounting or wiring this station. Verify that enclosure and wiring method selections are consistent with the NEMA rating of the station for the intended environment. Do not exceed the contact ratings specified on the device label or in the manufacturer documentation.
