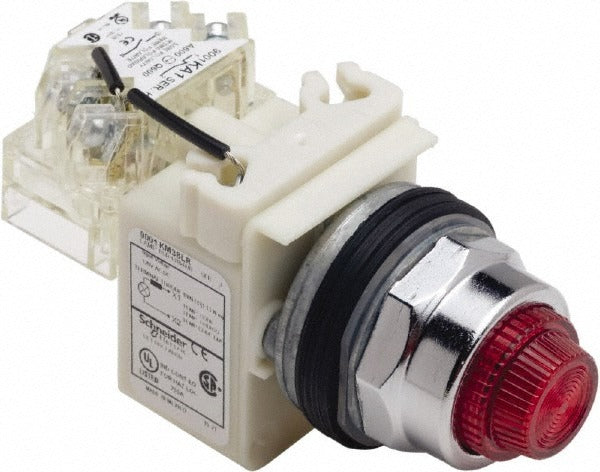

Schneider Electric 9001KT38LRR31 Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001KT38LRR31 is a 120-volt LED indicating light designed for industrial control panel applications. It features an octagonal red lens and a press-to-test function that allows technicians to verify lamp operation without interrupting the circuit. The screw clamp connector simplifies field wiring. At 0.4 pounds and compact panel-mount dimensions, this unit installs in standard 30 mm cutout positions found on machine control enclosures, motor control centers, and operator interface stations. Electricians and automation technicians are the typical installers.

This indicating light is suited for both residential and commercial-grade control panels where pilot light status indication is required. It is commonly used on HVAC equipment control panels, industrial machinery, pump control stations, and process automation enclosures. The red lens provides a clear fault or power-on signal visible at a distance. Its wide NEMA rating coverage — including NEMA 4X — makes it appropriate for wet, dusty, or corrosive environments where sealed enclosures are required.

Key Features

• Press-to-test function allows lamp verification without circuit interruption
• LED lamp type for long service life and low power draw compared to incandescent pilots
• Octagonal lens profile for easy panel identification among multiple pilot lights
• Screw clamp connector for secure, tool-based field termination
• NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 rated for broad enclosure compatibility
• RoHS compliant and meets UL 508, CSA, and IEC standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120-volt industrial control panels requiring a 30 mm press-to-test LED indicating light with screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC Article 409 for industrial control panels. De-energize and lock out the control panel before mounting or wiring this device. Secure wiring using the screw clamp terminals with an appropriate flat-blade screwdriver. Verify the panel voltage matches the 120-volt rating of this unit before energizing.
