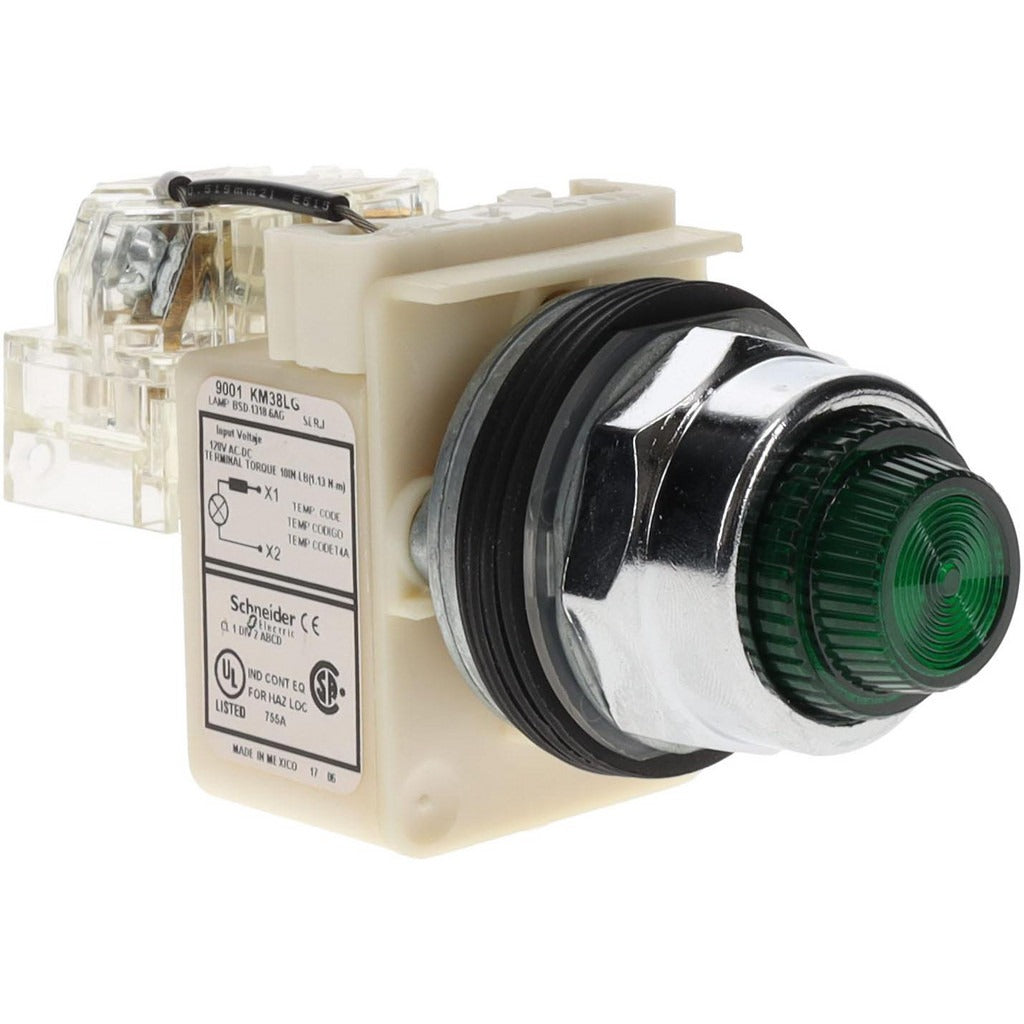

Schneider Electric 9001KT38LGG31 Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001KT38LGG31 is a green lens LED indicating light rated at 120 volts, designed for panel-mounted status indication in industrial and commercial control applications. It features a press-to-test function that lets technicians verify lamp operation without interrupting the circuit. The octagonal lens provides a wide viewing angle, and the screw clamp connector simplifies field wiring. This indicator light fits a standard 30mm panel cutout and is built to perform in demanding enclosure environments rated NEMA 1 through 13, including 4X for washdown and corrosive-atmosphere service. Licensed electricians and control panel builders are the primary installers.

This indicating light is suited for use in motor control centers, machine control panels, and industrial automation enclosures where reliable 120-volt status indication is required. The LED lamp type reduces maintenance intervals compared to incandescent alternatives. It is appropriate for both new panel builds and field replacement of worn or failed indicator lights in existing 30mm cutout assemblies across residential, commercial, and light industrial control applications.

Key Features

• Press-to-test function allows lamp verification without disconnecting the circuit
• Green lens LED lamp at 120 volts for high-visibility status indication
• Screw clamp connector for secure, tool-assisted field wiring
• 30mm panel cutout diameter fits standard industrial operator interface mounting
• NEMA 1/2/3/3R/4/4X/12/13 rated for broad enclosure type compatibility
• RoHS compliant and listed to UL 508, CSA C22.2 No. 14, and IEC 60947 series standards

Compatibility

Designed as an OEM-style replacement or new-build component for industrial control panels with standard 30mm panel cutout openings requiring 120-volt LED status indication.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel before mounting or wiring the indicator light. The screw clamp terminals require a small flat-blade screwdriver for proper termination. Verify the panel cutout is clean and dimensionally correct at 30mm before installing to ensure a secure, watertight fit in rated enclosures.
