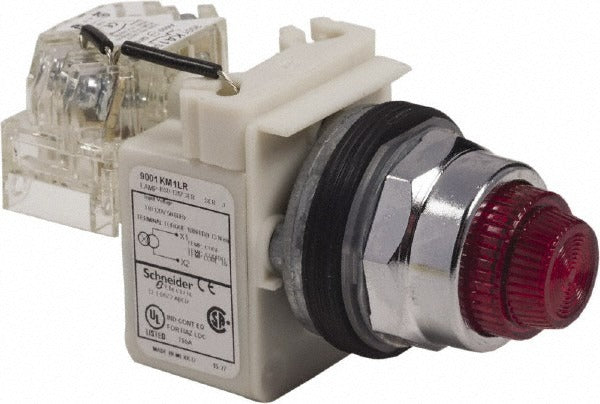

Schneider Electric 9001KT1LRR31 Led Pilot Light 120 Vac

Product Description

The Schneider Electric 9001KT1LRR31 is a 120 VAC LED pilot light designed for panel and control enclosure applications. It features a round red lens and a screw clamp connector for reliable, vibration-resistant termination. Operating on standard 120-volt AC power with an LED light source, it provides long service life and low power draw compared to incandescent alternatives. At 4.5 inches in length, 2.4 inches wide, and 2 inches tall, it fits standard pilot light cutouts and mounts cleanly in industrial and commercial control panels. Electricians and panel builders install this indicator to signal circuit status, equipment run conditions, or alarm states.

This pilot light is suited for use in industrial control panels, machine tool enclosures, and commercial electrical equipment where a durable, long-life LED indicator is required. It is rated for use in NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosures, making it appropriate for both indoor and outdoor-rated panel applications. The screw clamp connector simplifies field wiring and supports quick, secure connections without the need for crimp terminals.

Key Features

• LED lamp type for extended service life and low power consumption
• 120 VAC operating voltage — compatible with standard North American control circuits
• Round red lens for clear visual status indication
• Screw clamp connector for tool-assisted, vibration-resistant wiring termination
• NEMA 1/2/3/3R/4/6/12/13 enclosure ratings for broad environmental suitability
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or new-install LED pilot light for 120 VAC industrial and commercial control panel applications requiring a round-lens indicator with screw clamp termination.

Installation Notes

Installation is typically performed by a licensed electrician. De-energize the control panel and lock out the power source before beginning any wiring work, following NFPA 70E and applicable NEC requirements. Secure wiring using the screw clamp connector, ensuring conductors are fully seated before torquing the terminal screw. Verify the panel enclosure NEMA rating matches or exceeds the installation environment before mounting.
