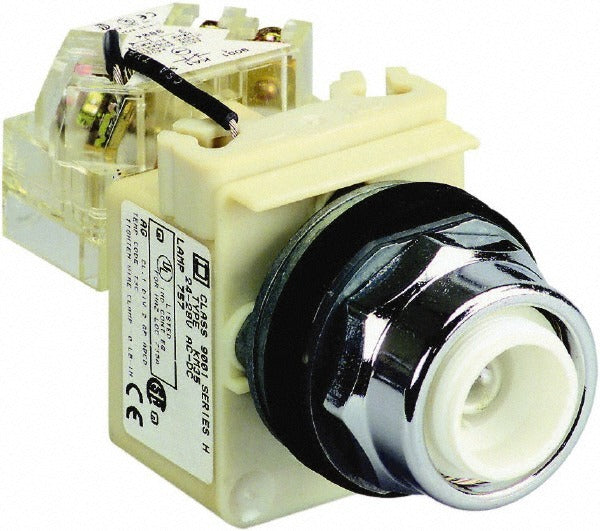

Schneider Electric 9001KT1 Indicating Light 120V

Product Description

The SCHNEIDER ELECTRIC 9001KT1 is a 120 VAC indicating light designed for panel and control station applications in industrial and commercial electrical systems. It uses a screw clamp connector for secure, tool-assisted termination and is built to meet demanding environmental ratings across a wide range of NEMA enclosure types. Licensed electricians and industrial controls technicians install this type of pilot light as a visual status indicator for machine control circuits, motor starters, and automated process panels. The unit carries UL listing, CSA certification, and CE marking, confirming compliance with recognized North American and international standards.

This indicating light is suited for use in control panels, operator interface stations, and machine enclosures where a reliable 120 VAC pilot light is required. Its NEMA ratings cover indoor and outdoor enclosures, including washdown and submersion-rated applications, making it appropriate for light industrial, manufacturing, and process-control environments. The screw clamp termination style is common in panel-build applications where vibration resistance and secure wire retention are priorities.

Key Features

• Rated for 120 VAC operation for direct connection to standard control circuit voltage
• Screw clamp connector provides vibration-resistant, tool-terminated wire connection
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure ratings for broad environmental coverage
• UL Listed under File E42259 CCN NKCR for recognized safety compliance
• CSA certified under LR25490 Class 3211 03 for Canadian market acceptance
• CE marked for compliance with applicable European directives

Compatibility

Designed as an OEM-style replacement or upgrade indicating light for industrial control panels and operator stations requiring a 120 VAC screw clamp pilot light with NEMA-rated enclosure compatibility.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify zero voltage at the circuit before installing or replacing the indicating light. Ensure the screw clamp terminals are torqued to the manufacturer specification on the terminal block and that the wire gauge used is appropriate for the circuit. Confirm the enclosure NEMA rating matches the environmental conditions of the installation site.
