Schneider Electric 9001KS52FB 3-position Selector Switch 600V

Product Description

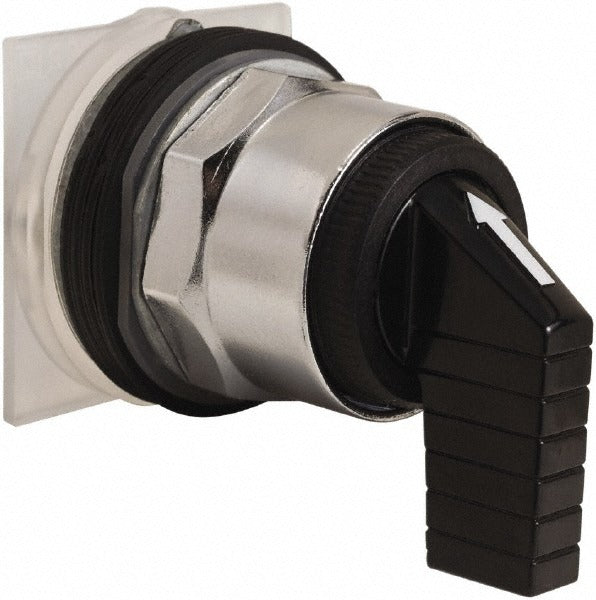

The SCHNEIDER ELECTRIC 9001KS52FB is a 3-position momentary selector switch operator designed for industrial control panel applications. The unit features a black knob-style operator with a chrome metal bezel and a 30mm panel mount hole diameter. Rated at 600 volts, it is built for demanding environments with dust-resistant, oil-resistant, and weatherproof construction. The operator is sold without contact blocks, making it a targeted replacement for the switch head assembly only. Installation is handled by licensed electricians or qualified control panel technicians working within applicable NEC guidelines.

This selector switch operator is suited for use in industrial and commercial control panels where a 3-position momentary action is required. The momentary operation returns the knob to center automatically after release, making it appropriate for jog, inch, or momentary command functions. The 30mm panel cutout is a widely used standard in industrial operator interface hardware. NEMA enclosure ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 make this operator compatible with a broad range of enclosure types, from general-purpose indoor panels to watertight and oil-tight environments.

Key Features

• 3-position momentary operation returns to center on release
• 600-volt rating supports standard industrial control circuit applications
• 30mm panel mount diameter fits widely used industrial panel cutouts
• Chrome metal bezel with black knob operator
• Dust-resistant, oil-resistant, and weatherproof construction
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13
• CE, CSA LR25490 Class 3211 03, and UL Listed (File E42259 CCN NKCR) certifications

Compatibility

Designed as an OEM-style replacement selector switch operator for 30mm industrial control panel assemblies. This part is the operator head only and does not include contact blocks. Verify contact block compatibility separately before ordering.

Installation Notes

Installation should be performed by a licensed electrician or qualified control panel technician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel before removing or installing any operator or contact block assembly. Confirm the panel cutout measures 30mm before mounting. Contact blocks are not included and must be ordered separately to complete the assembly.
