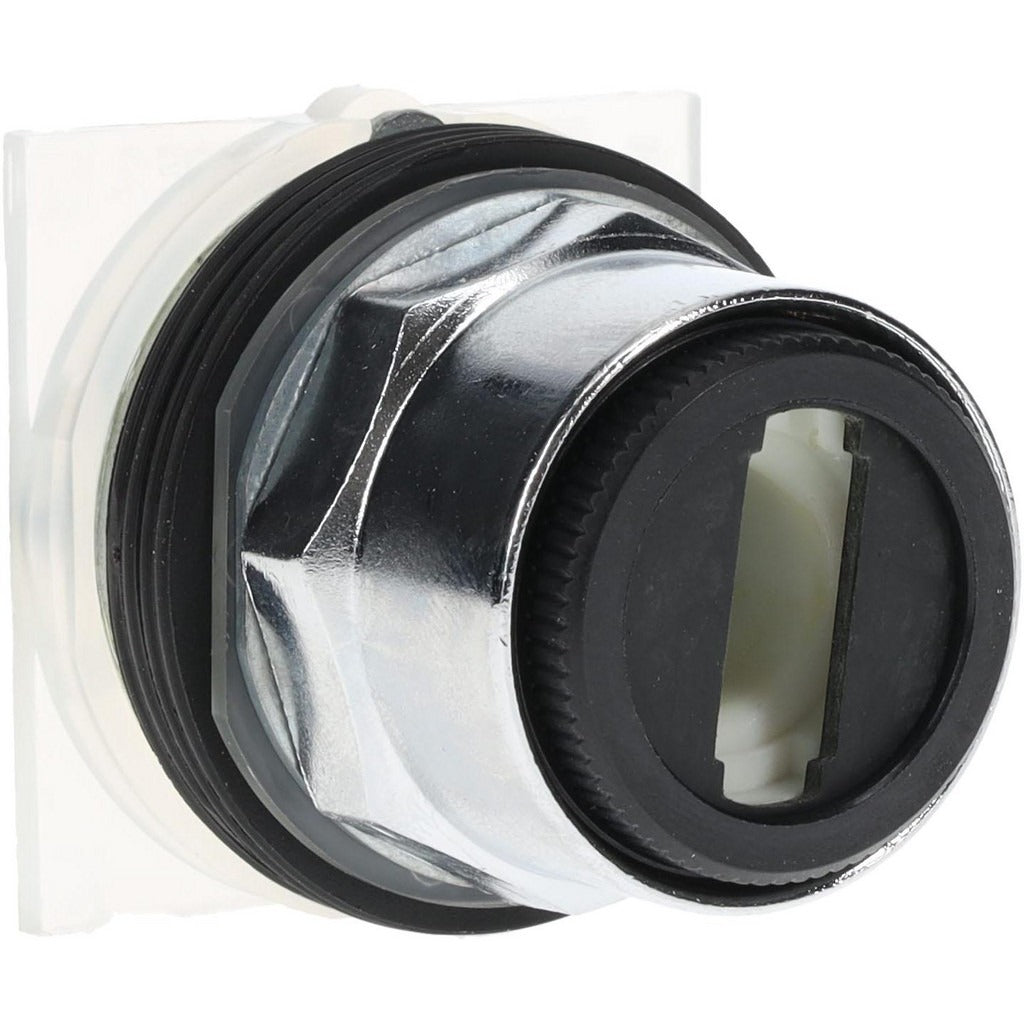

Schneider Electric 9001KS52 3-position Selector Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KS52 is a 3-position momentary selector switch designed for panel-mount industrial control applications. It operates at up to 600 volts and features a push-button operator with a chrome metal bezel. The switch ships without contact blocks, allowing technicians to configure the assembly with the appropriate contact block combination for the specific control circuit. Rated for NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosures, it is built to handle dust, oil, and weatherproof service conditions. Licensed electricians and industrial controls technicians are the primary installers.

The 9001KS52 is suited for use in industrial machinery, process control panels, and commercial electrical equipment where a 3-position momentary switching action is required. The 30 mm panel-mount format fits standard 30 mm cutout holes, making it a direct fit for new builds and replacement projects in existing control enclosures. Its broad NEMA rating range supports applications from light-duty indoor panels through wet or washdown-rated environments.

Key Features

• 3-position momentary (MO) operation for spring-return control logic
• 600-volt rating for industrial control circuit compatibility
• Chrome metal bezel for durability in high-cycle panel environments
• 30 mm panel-mount hole diameter fits standard industrial cutouts
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure ratings for broad environmental coverage
• Sold without contact blocks for flexible field configuration
• CE, CSA, and UL Listed certifications (UL File E42259, CCN NKCR; CSA LR24590 Class 3211 03)

Compatibility

Designed as a panel-mount selector switch operator for 30 mm industrial control stations. Compatible contact blocks and accessories must be sourced separately to complete the switch assembly.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before beginning any switch installation or replacement work. The panel cutout requires a 1.18-inch (30 mm) diameter hole for proper mounting. Do not apply contact blocks or wiring until the operator is fully secured to the panel.
