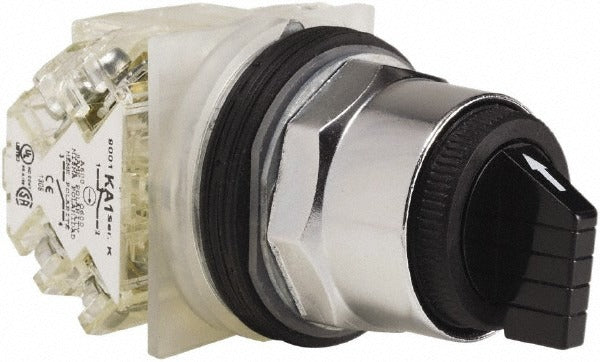

Schneider Electric 9001KS46BH2 Selector Switch 600V 10A

Product Description

The SCHNEIDER ELECTRIC 9001KS46BH2 is a 3-position, maintained-action selector switch rated for 600 volts and 10 amps, designed for panel-mount installation in industrial and commercial control applications. The switch uses a black knob operator and provides a 2NO/2NC contact configuration, giving it the flexibility to handle both energize and de-energize logic in a single device. The chrome metal bezel and sealed construction meet NEMA ratings up to 6, making it suitable for environments where dust, oil, and moisture are present. Licensed electricians and industrial controls technicians are the typical installers for this component.

This selector switch is built for panel-mount installations in control panels, motor control centers, and machine operator stations. The 30 mm panel cutout diameter follows a standard format used across a wide range of enclosures and control station housings. It fits residential, commercial, and light industrial control applications where a durable, weather-resistant operator selector is required. Screw terminals allow reliable field wiring under demanding service conditions.

Key Features

• 3-position maintained (MA) operation holds position without spring return
• 2NO/2NC contact configuration supports versatile control circuit logic
• 600V, 10A rating suitable for AC-15 and DC-13 utilization categories
• 30 mm (1.18 inch) panel cutout diameter fits standard industrial enclosures
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated for dust, oil, and weatherproof environments
• Chrome metal bezel with screw terminal wiring for secure, long-term connections

Compatibility

Designed as an OEM-style panel-mount selector switch for standard 30 mm control station cutouts in industrial and commercial electrical enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing any operator device. Screw terminals should be torqued to the enclosure or device manufacturer's published specification using an appropriate insulated screwdriver. Verify NEMA rating of the enclosure matches or exceeds the rating required by the installation environment before final assembly.
