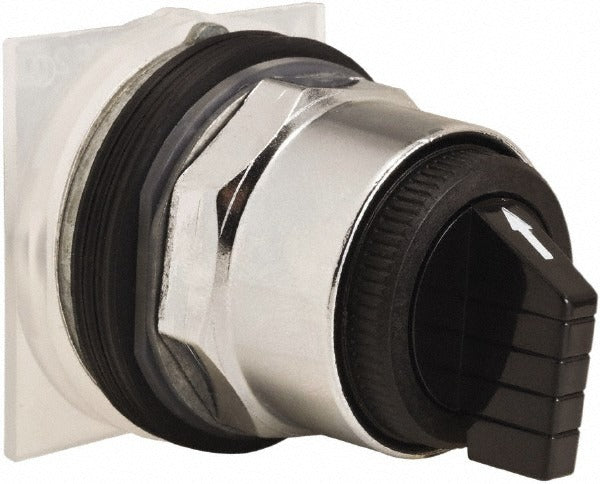

Schneider Electric 9001KS46B Selector Switch 3-position 600V

Product Description

The SCHNEIDER ELECTRIC 9001KS46B is a three-position maintained selector switch operator designed for panel-mount industrial control applications. The unit features a black knob-style push button operator with a chrome metal bezel and a 30 mm mounting hole diameter. Operating at up to 600 volts, this switch delivers reliable maintained-action operation, meaning the switch holds its selected position until manually moved. The chrome metal bezel and sealed construction provide durability in demanding environments. Licensed electricians and industrial maintenance technicians install this component as part of control panels, machinery, or equipment control stations.

This selector switch operator is suited for both light industrial and heavy-duty commercial environments. Its NEMA ratings cover a wide range of enclosure types, including NEMA 1, 2, 3, 3R, 4, 6, 12, and 13, making it appropriate for indoor, outdoor, dust-heavy, oil-splash, and watertight applications. The panel-mount design fits standard 30 mm cutouts commonly found in control enclosures across manufacturing, process control, and building automation installations. This part ships as the operator only and does not include contact blocks.

Key Features

• Three-position maintained operation — holds selected position without continuous operator input
• 600V rated for compatibility with standard industrial control voltage levels
• 30 mm panel-mount hole diameter fits widely used control enclosure cutouts
• Chrome metal bezel provides corrosion resistance and a secure panel interface
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings cover dust-resistant, oil-resistant, and weatherproof enclosure types
• CE, CSA, and UL Listed certifications (UL File E42259, CCN NKCR; CSA LR25490 Class 3211 03)

Compatibility

Designed as an OEM-style panel-mount selector switch operator for 30 mm control station assemblies. No contact blocks are included; compatible contact block modules must be sourced separately per the control circuit design.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing any operator or contact block components. Verify the 30 mm panel cutout dimensions and enclosure NEMA rating match the application requirements before mounting. Do not exceed the 600V voltage rating of the switch operator.
