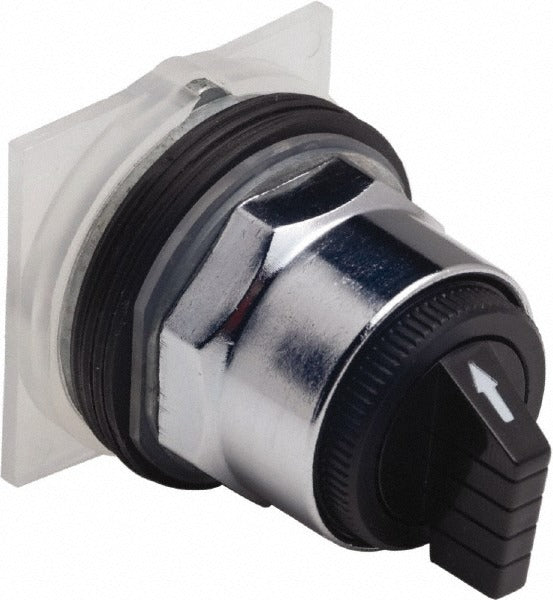

Schneider Electric 9001KS44B Selector Switch 3 Position 600V

Product Description

The SCHNEIDER ELECTRIC 9001KS44B is a 3-position maintained selector switch operator designed for industrial control panel applications. It features a black knob operator with a chrome metal bezel and mounts through a standard 30 mm panel cutout. Rated at 600 volts, this unit ships as the operator only with no contact blocks included. The maintained action holds the selected position until physically moved, making it suitable for mode selection, circuit switching, and equipment control functions. Installation is typically handled by licensed electricians or qualified industrial maintenance technicians.

The 9001KS44B is suited for use in commercial and industrial control panels where a durable, panel-mount selector switch operator is required. Its dust-resistant, oil-resistant, and weatherproof construction supports demanding environments. The broad NEMA rating covers enclosures rated NEMA 1, 2, 3, 3R, 4, 6, 12, and 13, making it applicable across a wide range of indoor and outdoor panel assemblies. Contact blocks are ordered separately and are not included with this operator.

Key Features

• 3-position maintained action holds switch position without spring return
• Black knob operator with chrome metal bezel for clear visual identification
• Rated 600 volts for compatibility with standard industrial control voltages
• 30 mm panel mount hole diameter for straightforward panel installation
• NEMA 1, 2, 3, 3R, 4, 6, 12, 13 rated for dust, oil, and weather resistance
• CE, CSA LR25490 Class 3211 03, and UL Listed (File E42259, CCN NKCR) certified

Compatibility

Designed as an operator-only replacement for 30 mm panel-mount selector switch assemblies. Compatible enclosure ratings include NEMA 1, 2, 3, 3R, 4, 6, 12, and 13. Contact blocks are not included and must be sourced separately.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify zero voltage at the mounting location before beginning installation. This unit is the operator only and requires separately sourced contact blocks to complete the switch assembly. Ensure the panel cutout matches the 30 mm hole diameter specification before mounting.
