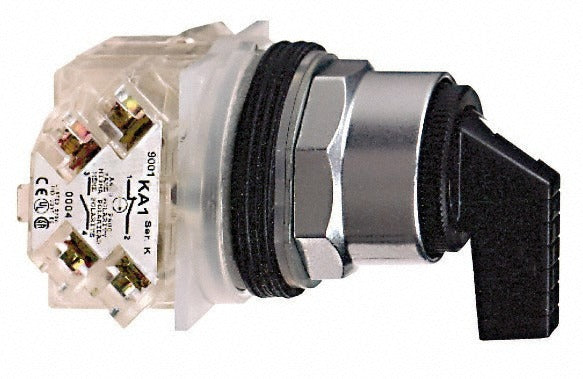

Schneider Electric 9001KS43FBH13 Selector Switch 3 Position

Product Description

The SCHNEIDER ELECTRIC 9001KS43FBH13 is a three-position, maintained-action selector switch designed for industrial and commercial control panel applications. It features a black knob operator with a chrome metal bezel and a 30 mm panel mount cutout. The switch is rated for 600 volts and 10 amps, with a NO/NC contact configuration. Screw terminals provide reliable field wiring connections. Dust-resistant, oil-resistant, and weatherproof construction supports use in demanding environments. Licensed electricians and control panel technicians are the primary installers of this device.

This selector switch is suited for use in machine control panels, motor control circuits, and industrial automation systems where a three-position maintained operation is required. Its NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 make it appropriate for both indoor and select outdoor enclosures. It is commonly wired into AC-15 or DC-13 utilization category circuits as defined by its listed standards.

Key Features

• Three-position maintained action for stable circuit control without spring return
• 600V, 10 amp rating supports standard industrial control voltages
• 30 mm panel mount hole diameter fits common industrial enclosure knockouts
• NO/NC contact configuration provides flexibility in control circuit wiring
• Chrome metal bezel with black knob operator for durable, easy identification
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated for broad enclosure compatibility
• Meets CE, CSA, and UL standards for use in listed control assemblies

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for 30 mm panel mount control stations in industrial and commercial control enclosures rated NEMA 1 through 6 and 12 through 13.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before installing or wiring this switch. Connections are made via screw terminals; ensure conductors are properly stripped and torqued per the panel assembly requirements. Verify the panel enclosure NEMA rating matches the environmental conditions of the installation site before mounting.
