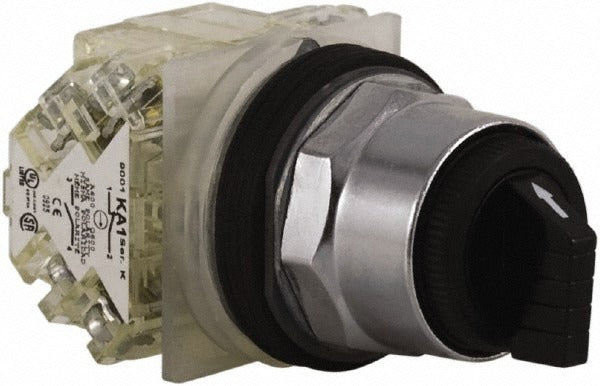

Schneider Electric 9001KS43BH2 Selector Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KS43BH2 is a 3-position maintained selector switch designed for industrial and commercial control panel applications. It operates at up to 600 volts and 10 amps, making it suitable for motor control, lighting, and general switching circuits. The switch features a black knob operator with a chrome metal bezel and a 30 mm panel mounting hole diameter. Contact configuration is 2NO/2NC. It is built to resist dust, oil, and weather, and is listed under UL File E42259 and CSA LR25490. Licensed electricians and industrial control technicians typically install this device during panel assembly or field retrofits.

The 9001KS43BH2 is suited for panel-mounted installations in both light industrial and demanding environments. Its NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 make it appropriate for indoor, outdoor, and washdown-rated enclosures. The maintained action holds its selected position without requiring constant operator force, which is common in run/off/jog, forward/off/reverse, and multi-speed motor control circuits. Screw terminals simplify field wiring in new construction and retrofit scenarios alike.

Key Features

• 3-position maintained operation holds switch position without continuous operator input
• 600V, 10 amp rating covers a wide range of industrial control circuit loads
• 2NO/2NC contact configuration supports dual-circuit switching in a single device
• 30 mm panel cutout fits standard 30 mm control station holes and enclosures
• Chrome metal bezel with black knob provides durable, professional panel appearance
• Dust-resistant, oil-resistant, and weatherproof construction for harsh environments
• UL Listed, CSA certified, and CE marked; meets Utilization Categories AC-15 and DC-13

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for 30 mm panel cutout control stations in industrial and commercial electrical enclosures rated NEMA 1, 2, 3, 3R, 4, 6, 12, or 13.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing the switch. Screw terminals should be tightened to the enclosure manufacturer's specified torque range using an insulated screwdriver. Verify contact configuration and wiring diagram against the control circuit schematic before restoring power.
