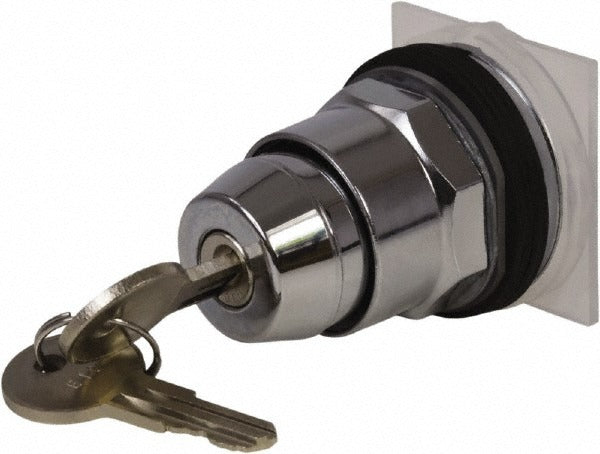

Schneider Electric 9001KS12K1 2-position Selector Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KS12K1 is a 2-position maintained-action selector switch designed for panel-mount industrial control applications. It operates at up to 600 volts and uses a black knob operator with a chrome metal bezel. The maintained (MA) operation type means the switch holds its selected position until physically moved, making it suited for on/off or run/stop control circuits. The panel cutout requires a 1.18-inch (30 mm) diameter hole. It ships as a switch operator only, with zero contact blocks included, so contact blocks must be ordered separately to complete the assembly.

This selector switch is intended for use in industrial and commercial control panel applications where a reliable, multi-environment-rated operator is required. Its NEMA ratings cover a wide range of enclosure types, including NEMA 1, 2, 3, 3R, 4, 6, 12, and 13, making it appropriate for indoor dry locations, outdoor weather-exposed installations, and oil- or dust-laden environments. Electricians and industrial control panel builders typically install this component during panel fabrication or field replacement of a worn or damaged operator.

Key Features

• 2-position maintained (MA) operation holds switch position until manually changed
• 600V voltage rating suitable for standard industrial control circuits
• Black knob operator with chrome metal bezel for durable, professional-grade panel appearance
• 1.18-inch (30 mm) panel hole diameter for standard 30 mm cutout mounting
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated for dust-resistant, oil-resistant, and weatherproof enclosures
• CE, CSA (LR24590 Class 3211 03), and UL Listed (File E42259 CCN NKCR) certifications
• Selector switch operator only — no contact blocks included; order contact blocks separately

Compatibility

Designed as an OEM-style panel-mount selector switch operator for standard 30 mm industrial control panel cutouts. No specific compatible model numbers or replacement part numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician with the control panel de-energized and locked out per NFPA 70E lockout/tagout procedures before any work begins. The operator mounts through a 1.18-inch (30 mm) panel cutout and secures with the included hardware; contact blocks must be purchased and attached separately before the assembly is wired. Follow applicable NEC requirements for industrial control wiring. Do not exceed the 600V voltage rating of the device.
