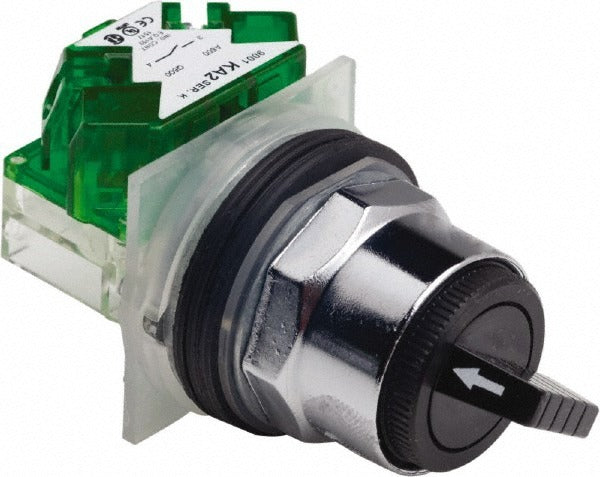

Schneider Electric 9001KS11BH5 Selector Switch 2-position 600V

Product Description

The SCHNEIDER ELECTRIC 9001KS11BH5 is a 2-position maintained selector switch rated for 600 volts and 10 amps, designed for panel-mount control applications in industrial and commercial electrical systems. The switch uses a black knob operator and features a chrome metal bezel with a 30 mm panel cutout diameter. Contacts are normally open (NO) and operate in maintained (MA) mode, meaning the switch holds its selected position until physically moved. It is installed by licensed electricians and control panel builders working on motor control, machine control, or process automation equipment.

This selector switch is suited for use in NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosures, covering a wide range of indoor and outdoor control panel applications. Its dust-resistant, oil-resistant, and weatherproof construction makes it appropriate for demanding industrial environments where contamination is a concern. The screw terminal connection simplifies field wiring during new panel builds or replacement installations.

Key Features

• 2-position maintained operation — switch holds selected position without spring return
• 600V rating with 10 amp capacity across AC-15 and DC-13 utilization categories
• 30 mm panel cutout diameter for standard industrial panel compatibility
• Black knob operator with chrome metal bezel for durable, professional appearance
• Dust-resistant, oil-resistant, and weatherproof construction
• Screw terminal wiring for reliable field connections

Compatibility

Rated for NEMA enclosure types 1, 2, 3, 3R, 4, 6, 12, and 13. Designed as a panel-mount control switch for standard 30 mm industrial control station applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel before beginning any wiring or mounting work. The switch requires a 30 mm panel cutout and is secured via panel-mount hardware. Verify contact configuration and circuit voltage match system requirements before energizing.
