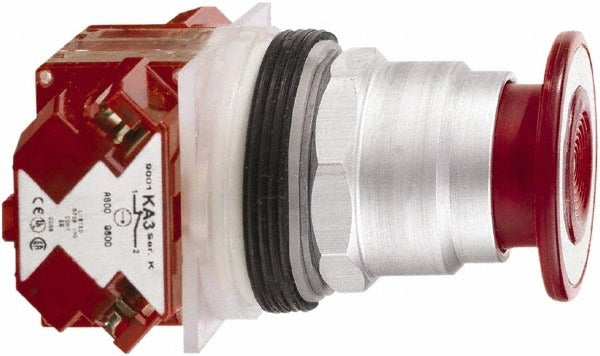

Schneider Electric 9001KR9RH6 Push-button Switch 30mm

Product Description

The SCHNEIDER ELECTRIC 9001KR9RH6 is a maintained-action push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter, a red round extended mushroom-head actuator, and a normally closed (NC) contact configuration rated at 600 volts AC and 10 amps. The metal and plastic construction supports NEMA ratings across multiple enclosure types. This switch is installed by licensed electricians and industrial controls technicians in motor control centers, machine operator stations, and panel boards where latching on/off control is required.

This push-button switch is suited for both light industrial and heavy-duty commercial control applications. The maintained operation type means the switch holds its actuated state until pressed again, making it appropriate for stop circuits, lockout stations, and two-state process control inputs. Its multi-standard certifications make it viable for installations governed by UL, CSA, IEC, and JIS requirements. The extended mushroom-head form factor provides a large, easily identifiable actuation surface in high-density panel layouts.

Key Features

• Maintained (MA) operation holds switch state after actuation without continuous operator pressure
• Normally closed (NC) contact configuration for stop-circuit and safety-interlock applications
• Red round extended mushroom-head actuator for high-visibility panel identification
• 30 mm mounting hole diameter fits standard IEC control panel cutouts
• Rated 600 volts AC at 10 amps for compatibility with industrial control voltages
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure ratings for broad environmental suitability
• Multi-standard certified: UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852

Compatibility

Designed as an OEM-style replacement or direct-install push-button switch for industrial control panels and operator stations requiring a standard 30 mm IEC-format maintained-action switch with NC contact output.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or removing the switch. Verify contact configuration and voltage rating against the circuit schematic before wiring. Confirm the panel enclosure NEMA rating is appropriate for the installation environment.
