Schneider Electric 9001KR9P35LRR Push-button Switch 30mm

Product Description

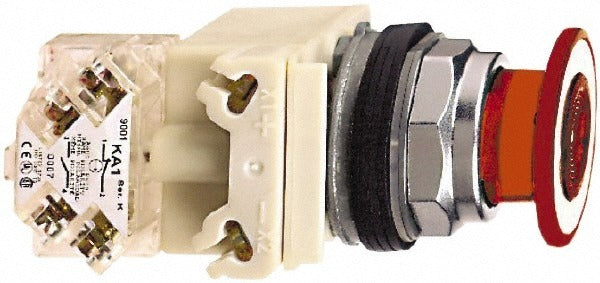

The SCHNEIDER ELECTRIC 9001KR9P35LRR is a heavy-duty, illuminated push-button switch designed for industrial control panel applications. It features a maintained (MA) operation type, meaning the switch holds its position after each actuation rather than returning to its original state. The operator head is a red, round, extended mushroom-head style constructed of metal, mounted through a 30 mm panel cutout. Licensed electricians and panel builders install this switch in machine control, automation, and process equipment enclosures where a latching on/off function with a visible illuminated indicator is required.

This switch is suited for industrial and commercial control panels in manufacturing, process automation, and equipment control applications. The maintained action and illuminated red mushroom head make it a common choice for emergency-stop circuits, motor start/stop stations, and machine control interfaces where operator status feedback is critical. The NEMA 1, 2, 3, 3R, 4, 12, and 13 ratings allow installation in environments ranging from general indoor use to oil-tight and dust-tight enclosures.

Key Features

• Maintained (MA) operation holds switch position after actuation
• Illuminated red round mushroom-head operator for clear visual status indication
• Metal push-button material for durability in industrial environments
• 30 mm mounting hole diameter for standard panel cutout compatibility
• NEMA ratings 1, 2, 3, 3R, 4, 12, and 13 covering a wide range of enclosure types
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852

Compatibility

Designed as an OEM-style replacement push-button switch for industrial control panels and equipment requiring a 30 mm maintained illuminated operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing the switch. Verify the panel cutout diameter matches the 30 mm mounting hole requirement before installation. Confirm the enclosure NEMA rating is appropriate for the installation environment before mounting.
