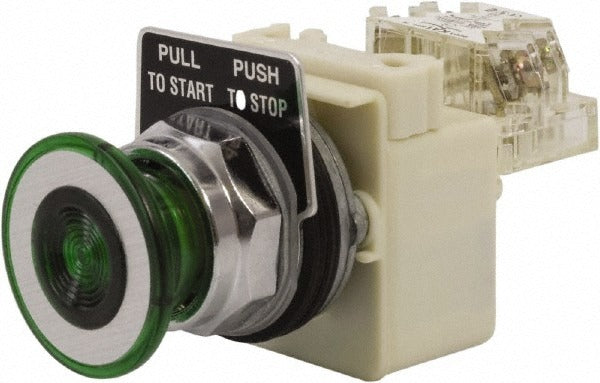

Schneider Electric 9001KR9P1GH13 Push-button Switch

Product Description

The SCHNEIDER ELECTRIC 9001KR9P1GH13 is a maintained-action industrial push-button switch rated for 600 volts AC and 10 amps. It features a 30 mm mounting hole diameter and a green extended (straight) push button. The NC/NO contact configuration makes it suitable for both normally closed and normally open control circuit applications. Electricians and industrial control technicians install this switch in panel doors, operator stations, and machine control enclosures where a latching on/off input is required. The maintained operation type means the switch holds its actuated position until deliberately pressed again, rather than springing back on release.

This push-button switch is used in industrial and commercial control panel applications requiring a 30 mm cutout. The green button color conventionally signals a start or run function in machine control wiring. It is appropriate for use in enclosed operator panels, motor control centers, and field control stations. Its NEMA ratings cover a wide range of enclosure types, supporting use in general-purpose, drip-proof, oil-tight, dust-tight, and watertight environments depending on the enclosure selected.

Key Features

• Maintained (MA) operation holds switch state after actuation without continuous operator pressure
• NC/NO contact configuration supports both normally closed and normally open control circuit wiring
• 600 volt AC rating suitable for industrial control voltage applications
• Green extended straight push button provides clear visual identification as a start or run actuator
• 30 mm mounting hole diameter fits standard 30 mm panel cutouts
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad enclosure compatibility

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial control panels and operator stations requiring a 30 mm maintained-action actuator with NC/NO contacts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the panel before removing or installing the switch. Verify that the control circuit voltage does not exceed 600 volts AC before wiring. Confirm the enclosure NEMA rating matches the environmental conditions of the installation location.
