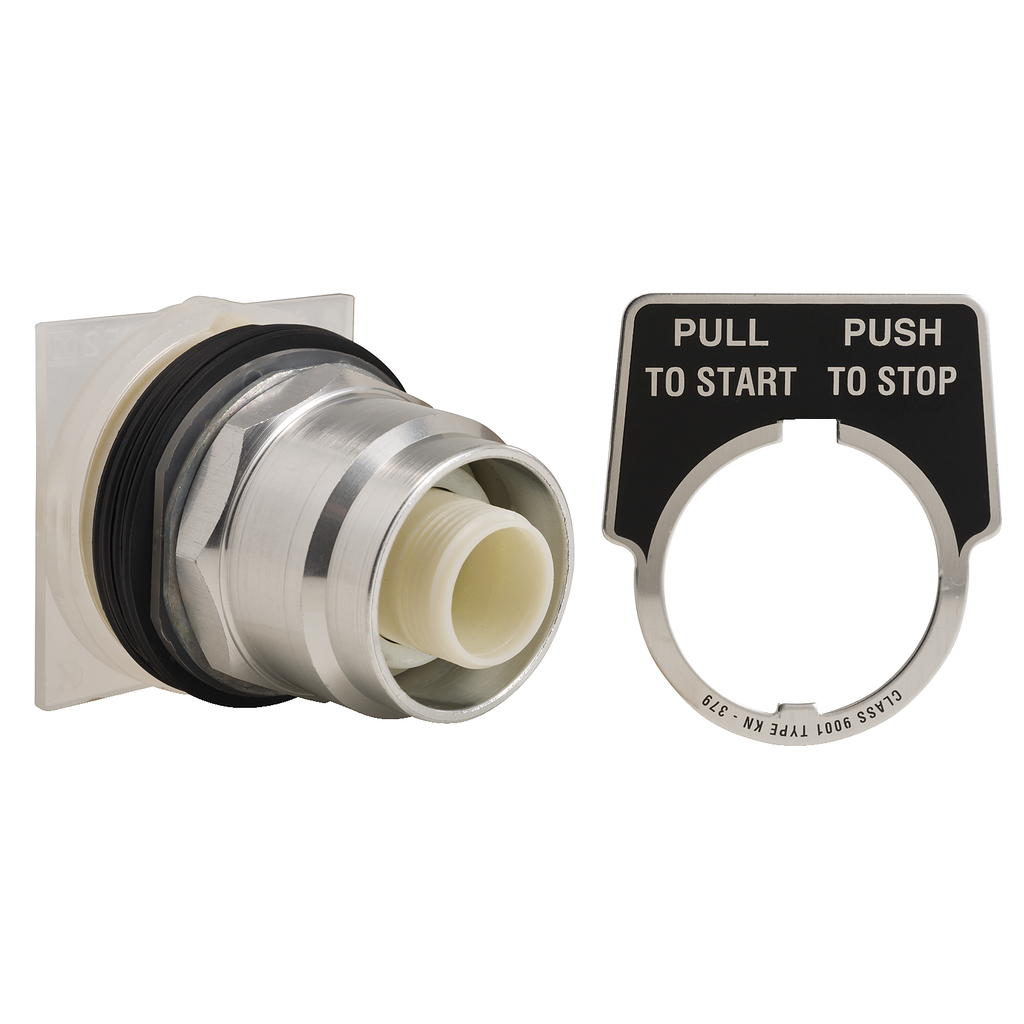

Schneider Electric 9001KR8 Square D 30 mm Chrome Plated Metal Bezel 3-Position Mushroom Non-Illuminated Push-Pull Operator

Product Description

The Schneider Electric 9001KR8 is a 30 mm push-pull operator designed for heavy industry applications. This non-illuminated push-button is suitable for environments including petrochemical, mining, and automotive manufacturing. The unit features a die-cast body that fits in a round hole measuring 1.18 inches. Utilization of this operator requires additional contact blocks, typically the 9001KA3 and 9001KA5, which allow a pull-to-start and push-to-stop function for control circuits.

• UL listed for various NEMA environments
• Can be illuminated with a separate light module
• Compatible with a standard 30 mm panel cutout

Product Highlights

This device is certified by UL and CSA and is ideal for robust industrial applications. It supports three-wire control and comes with a metal nut for secure mounting.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: 9001KR8
• UPC: 785901008804
• Contact Rating: AC15 - DC13
• Warranty Length: Eighteen months
• Country of Origin: Mexico
• Enclosure Type: NEMA 1/2/3/3R/4/6/12/13
• Actuator Type: Spring return, without cap flush
• Applications: Non-illuminated push-button
