Schneider Electric 9001KR3R Push-button Switch 600V

Product Description

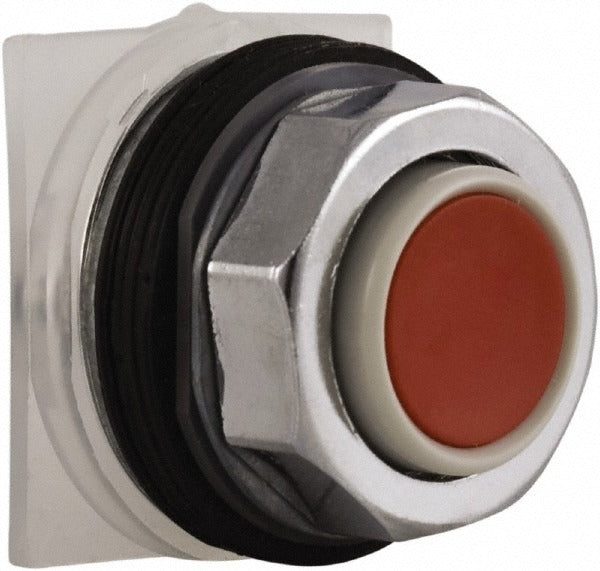

The SCHNEIDER ELECTRIC 9001KR3R is a momentary push-button switch rated for 600 volts, designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter with a red, round, extended (straight) push button. The switch carries NEMA ratings covering Types 1, 2, 3, 3R, 4, 6, 12, and 13, making it suitable for environments that demand dusttight, oiltight, and watertight protection. Licensed electricians and panel builders install this switch in motor control centers, machine control enclosures, and operator interface stations where reliable momentary contact switching is required.

This switch is intended for use in industrial control panels, manufacturing equipment, and commercial electrical systems where a 30 mm operator format is standard. Its extended round red button provides clear visual identification for operators, a common requirement in start, stop, and emergency-function control layouts. The momentary contact operation returns the circuit to its normal state once the button is released, making it appropriate for jog, run, and reset functions in motor and machine control circuits.

Key Features

• Momentary (MO) operation returns to normal state upon button release
• Red, round, extended (straight) button profile for clear operator identification
• 30 mm mounting hole diameter fits standard 30 mm cutout enclosures and panels
• Rated 600 volts for industrial control circuit applications
• NEMA Types 1, 2, 3, 3R, 4, 6, 12, and 13 ratings with dusttight, oiltight, and watertight protection
• Certified to CE, CSA LR25490 Class 3211 03, and UL Listed File No. E42259 CCN NKCR

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 30 mm operator control stations and industrial control enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing the switch. Verify the enclosure NEMA rating matches the environmental requirements of the installation location. Do not exceed the rated 600-volt circuit voltage when wiring the switch into the control circuit.
