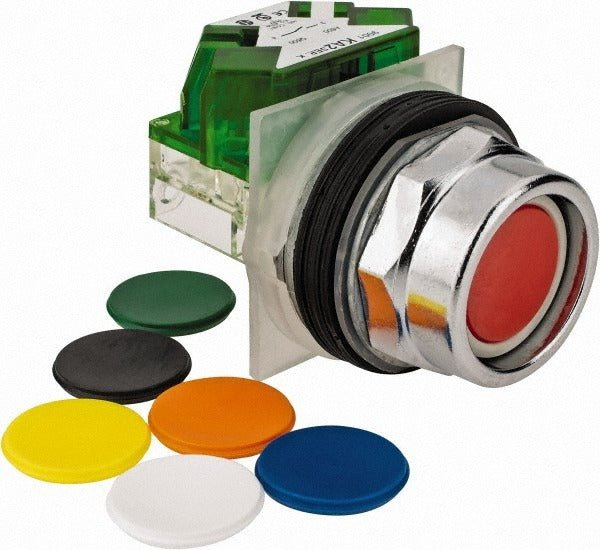

Schneider Electric 9001KR2UH5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR2UH5 is a heavy-duty momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel and machine tool applications. It features a recessed, octagon-shaped metal push button that fits a 30 mm mounting hole diameter. The recessed profile reduces the risk of accidental actuation, making it suitable for equipment where unintended activation is a safety concern. This switch is installed by licensed electricians and industrial maintenance technicians working on motor control, automation, and process equipment panels.

This push-button switch is intended for use in industrial and commercial control circuits requiring a normally open (NO), momentary contact configuration. The 30 mm mounting hole diameter is a standard panel cutout size common in motor control centers, operator interface panels, and machine tool enclosures. Its metal construction and multicolor availability suit demanding environments where durability and panel aesthetics both matter. The NEMA ratings cover a broad range of enclosure types, making it viable for indoor, outdoor, and wash-down adjacent installations.

Key Features

• Momentary (MO) operation with normally open (NO) contact configuration
• Rated 600 volts AC at 10 amps for industrial control circuits
• Recessed octagon metal push button reduces accidental actuation risk
• Fits standard 30 mm panel mounting hole diameter
• NEMA ratings 1, 2, 3, 3R, 4, 12, and 13 for broad enclosure compatibility
• Meets CSA, UL 508, EN/IEC 60947, and JIS standards for global installations

Compatibility

Designed as an OEM-style replacement or upgrade push-button switch for industrial control panels and machine tool enclosures using a standard 30 mm mounting hole diameter.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing the switch. Verify the panel enclosure NEMA rating matches the installation environment before mounting. Do not exceed the rated voltage and amperage for the contact configuration in service.
