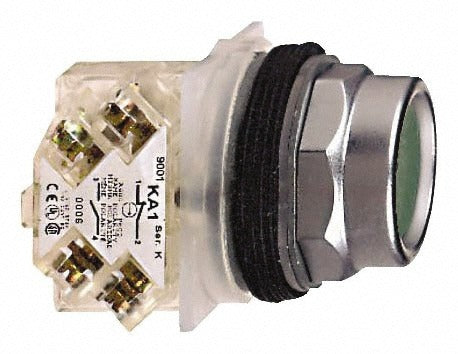

Schneider Electric 9001KR2GH5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR2GH5 is a heavy-duty momentary push-button switch designed for industrial control panel applications. Rated at 600 volts AC and 10 amps, it features a recessed, octagon-shaped green metal button mounted through a 30 mm hole. The normally open (NO) contact configuration closes only while the operator applies pressure, making it well-suited for start commands, jog functions, and signal inputs in machine control circuits. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This push-button switch is intended for use in industrial and commercial control panels, motor control centers, and operator interface stations. The recessed button profile reduces the risk of accidental actuation in environments where the panel may be subject to vibration or incidental contact. Its metal construction and broad NEMA rating make it appropriate for indoor and outdoor enclosures across a wide range of industrial settings. Typical applications include conveyor systems, pump controls, and general machine start or signal circuits.

Key Features

• Momentary (MO) normally open contact — closes only under applied pressure
• Recessed octagon green metal button — reduces accidental activation
• 600 volts AC rating at 10 amps for robust control-circuit performance
• 30 mm mounting hole diameter for standard industrial panel cutouts
• NEMA 1, 2, 3, 3R, 4, 12, and 13 rated enclosure compatibility
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial control panels requiring a standard 30 mm momentary operator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing an existing switch or inserting this unit into the mounting hole. Verify the panel enclosure NEMA rating matches the environment before completing installation. Do not exceed the rated voltage or amperage for the contact circuit.
