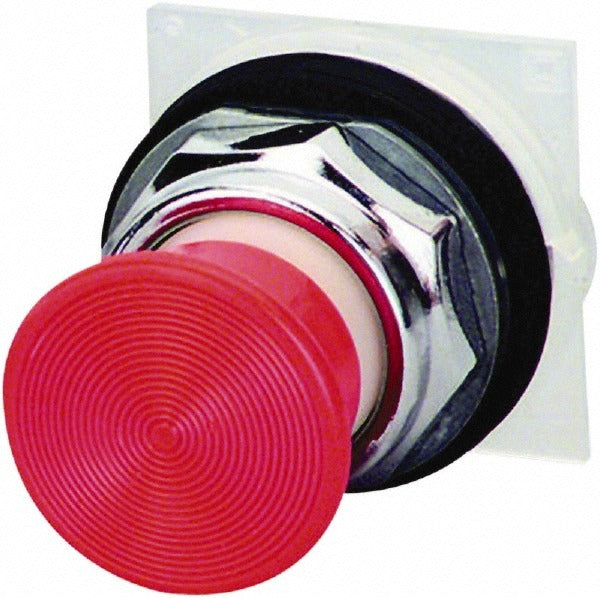

Schneider Electric 9001KR24R Push-button Switch Red 30mm

Product Description

The SCHNEIDER ELECTRIC 9001KR24R is a momentary push-button switch with a 30 mm mounting hole diameter, designed for industrial and commercial control panel applications. It features an extended straight button profile in red, allowing operators to quickly identify and actuate the control. The momentary (MO) operation means the switch returns to its default state as soon as pressure is released. Rated across multiple NEMA enclosure types, this switch is built to handle demanding environments. Licensed electricians and industrial control technicians are the primary installers for this type of switch.

The 9001KR24R is suited for use in control stations, motor starters, and operator interface panels in both commercial and light industrial settings. The red extended push-button is commonly used for stop or alert functions on control circuits. Its broad NEMA rating — covering NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 — makes it appropriate for indoor dry locations, outdoor weatherproof installations, and wash-down or submersion-rated enclosures. It ships as a single-unit package with a minimum order quantity of one.

Key Features

• Momentary (MO) operation returns switch to default state on release
• Extended straight push-button profile for easy operator actuation
• Red button color for stop or alert function identification
• 30 mm mounting hole diameter fits standard industrial control panel cutouts
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad environmental suitability

Compatibility

Designed as an OEM-style replacement push-button switch for 30 mm industrial control stations and operator panels requiring a momentary red extended push-button.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC guidelines. De-energize the control panel completely before removing or installing any switch component. Verify the panel cutout diameter matches the 30 mm mounting requirement before installation. Do not overtighten the mounting hardware, as this may crack the switch body or distort the enclosure.
