Schneider Electric 9001KR24BH13 Push-button Switch 600V

Product Description

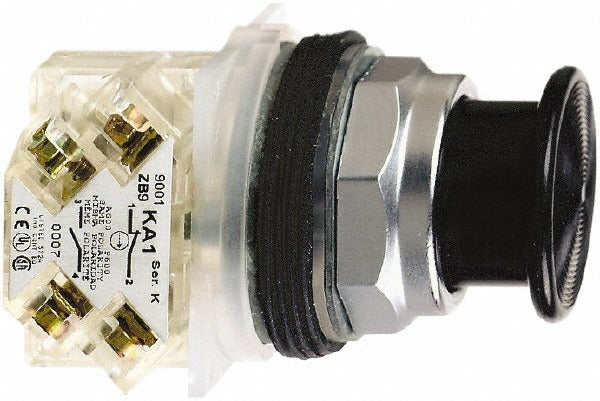

The SCHNEIDER ELECTRIC 9001KR24BH13 is a momentary push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter and an extended mushroom head actuator in black with a round profile. The switch operates at up to 600 volts AC and handles up to 10 amps, making it suitable for machine control, motor starter, and panel interlock circuits. The contact configuration provides both a normally closed and normally open output in a single unit. Licensed electricians and industrial control technicians are the primary installers of this switch.

This push-button switch is intended for use in industrial and commercial control panels where a momentary NC/NO contact configuration is required. The 30 mm mounting hole diameter is a standard industrial format compatible with many panel cutout templates. The extended mushroom head design is commonly used in applications requiring a large, easy-to-actuate operator, such as emergency-stop adjacent controls, conveyor lines, and machine tool panels. NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 allow use in a wide range of enclosure types and environments.

Key Features

• Momentary operation with dual NC/NO contact configuration in one device
• Extended mushroom head actuator for large-surface actuation
• 30 mm standard mounting hole diameter fits common industrial panel cutouts
• 600V AC rated at 10 amps for robust industrial circuit use
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure ratings
• Meets CSA, UL 508, EN/IEC 60947, and JIS standards

Compatibility

Designed as an OEM-style replacement push-button switch for industrial control panels requiring a 30 mm momentary operator with NC/NO contact output.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing the switch. Verify contact configuration wiring matches the circuit logic before restoring power. Do not exceed the rated voltage or amperage for the switch contacts.
