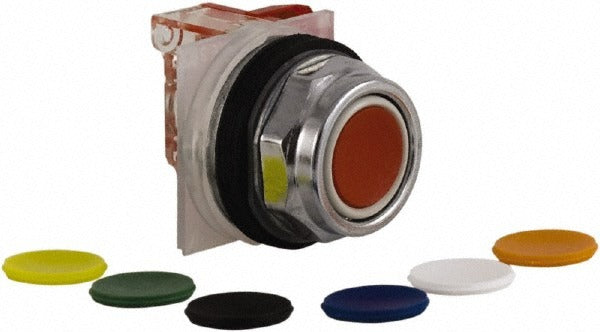

Schneider Electric 9001KR1UH6 Push-button Switch 600VAC

Product Description

The SCHNEIDER ELECTRIC 9001KR1UH6 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and an extended straight push button actuator. The normally closed (NC) contact configuration makes it well suited for stop circuits and safety interlocks. Licensed electricians and industrial maintenance technicians install this switch during panel builds, machine control upgrades, and control station replacements. At 0.29 pounds, it is a compact, single-unit component built for demanding electrical environments.

This push-button switch is used in industrial control panels, motor control stations, and machinery operator interfaces across commercial and light industrial settings. The 30 mm format is a widely adopted standard in control panel construction. Available in multiple button colors including black, blue, green, red, white, and yellow, the 9001KR1UH6 supports color-coded operator interface layouts. Its NEMA ratings cover a broad range of enclosure types, making it suitable for both indoor and select outdoor or washdown installations.

Key Features

• Momentary (MO) operation with normally closed (NC) contact configuration for stop and safety interlock circuits
• Extended straight actuator style for positive operator feel in control panel applications
• Available in six button colors: black, blue, green, red, white, and yellow
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad enclosure compatibility
• 600 VAC, 10-amp rating for industrial control voltage applications
• 30 mm mounting hole diameter conforms to common control panel standards

Compatibility

Designed as an OEM-style replacement for 30 mm push-button switch assemblies in industrial and commercial control panel stations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the control panel before removing the existing switch or installing this unit. Verify the panel enclosure NEMA rating matches the installation environment before mounting. Confirm contact configuration and circuit function before returning the panel to service.
