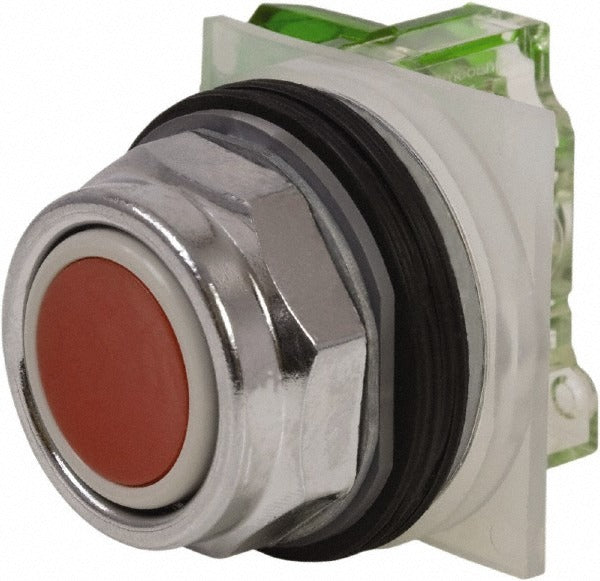

Schneider Electric 9001KR1RH5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR1RH5 is a momentary push-button switch designed for industrial control panel and machinery applications. It features a 30 mm mounting hole diameter and is rated for 600 volts AC at 10 amps. The switch is configured as a normally open (NO) contact with an extended straight push button in red. It is installed by licensed electricians and control panel integrators working on motor control centers, machine guarding circuits, and operator interface stations. The extended actuator profile makes it easy to identify and actuate in busy panel environments.

This switch is suited for industrial and commercial control applications where a momentary operator action is required to initiate or interrupt a circuit. Typical installations include motor start circuits, conveyor controls, and process control panels. The red color designation commonly signals stop, emergency, or alarm functions in control panel layouts, making this switch appropriate for those operator interface roles. Its NEMA ratings cover a wide range of environmental enclosures, from indoor general-purpose to outdoor and watertight applications.

Key Features

• Momentary (MO) operation returns to default position when released
• Normally open (NO) contact configuration for standard start or signal circuits
• Extended straight actuator for positive tactile engagement in panel layouts
• Red push button color for stop, alarm, or emergency function identification
• Rated NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 for broad enclosure compatibility
• 600 volts AC rating supports a wide range of industrial control voltages

Compatibility

Designed as an OEM-style replacement push-button switch for 30 mm diameter panel cutouts in industrial control enclosures rated NEMA 1 through NEMA 13.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power to the control panel before removing or installing any switch operator or contact block. Verify the contact configuration and voltage rating match the circuit design before energizing. Do not exceed the rated voltage or amperage of the switch.
