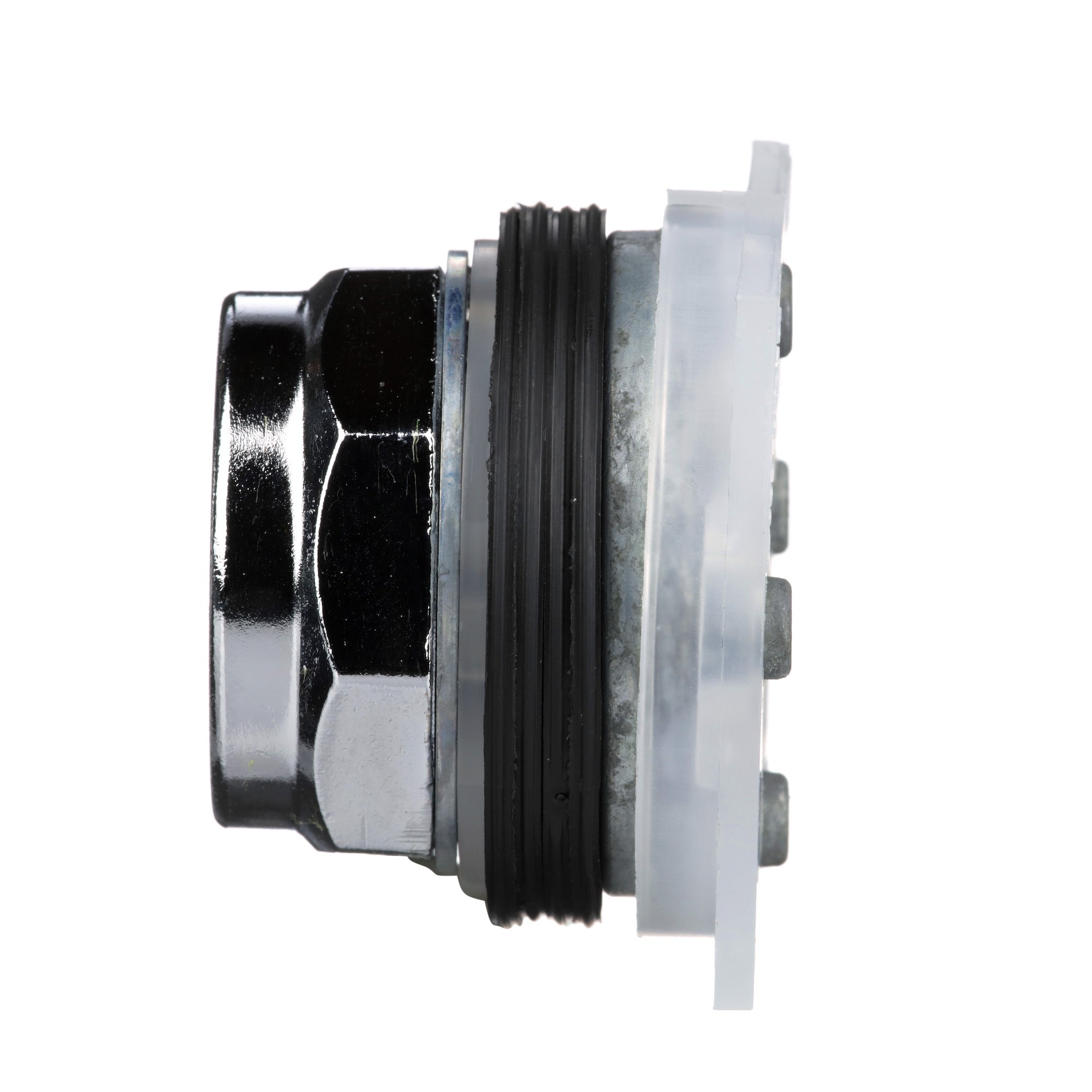

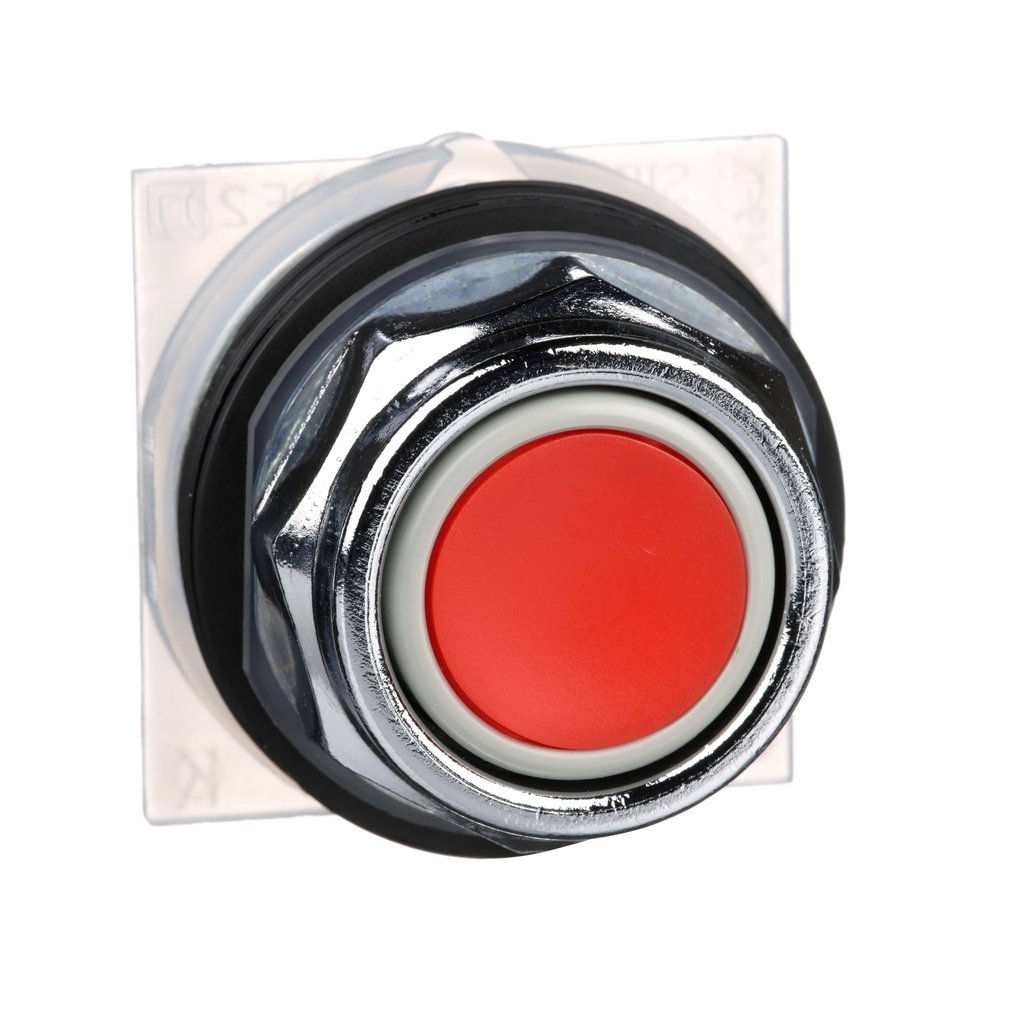

Schneider Electric 9001KR1R 30 mm Red Body Metal Bezel Momentary Full Guarded Non-Illuminated Push Button Operator

Product Description

The Schneider Electric 9001KR1R is a 30 mm non-illuminated push button operator. This metal bezel push button is designed for durability in harsh environments. It features self-grounding for easy installation and is ABS certified. Ideal for various applications, this button is impact, dust, water, and vibration resistant, meeting IP66 standards. It is also NEMA 4 rated, ensuring protection against water and dust ingress.

• Self-grounding design requires no additional wiring
• IP66 rating for water and dust resistance
• Compatible with various contact blocks and accessories

Product Highlights

The 9001KR1R offers flexibility and reliability for industrial applications. It is suitable for use in automotive, machine tools, crane systems, and more.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: 9001KR1R
• Color: Red
• Type: Head for spring return push-button
• Voltage: 600 Volt
• Enclosure Rating: NEMA 1/2/3/3R/4/6/12/13
• Applications: Non-illuminated push-button
• Bezel Material: Metal
• Warranty Length: 18 months
