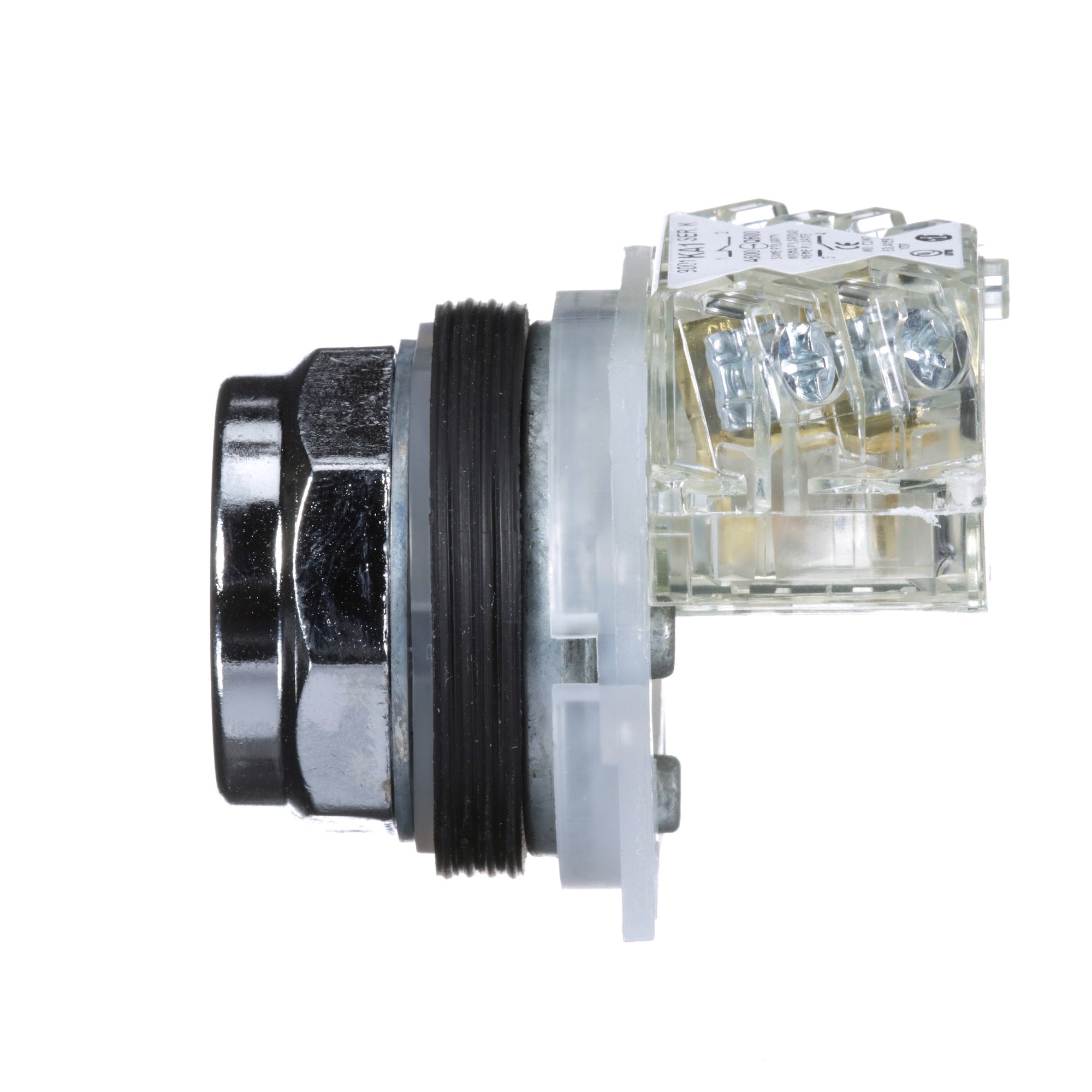

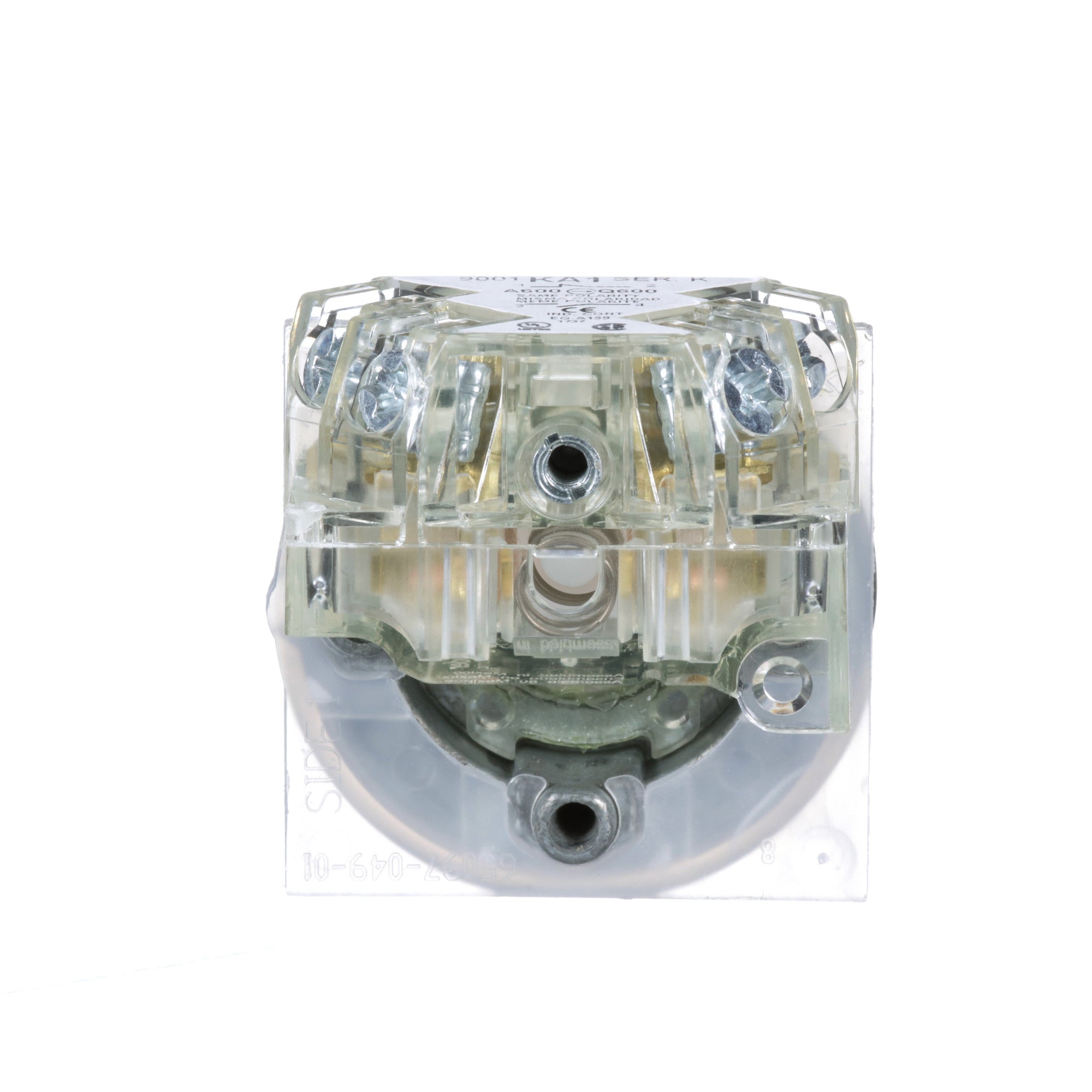

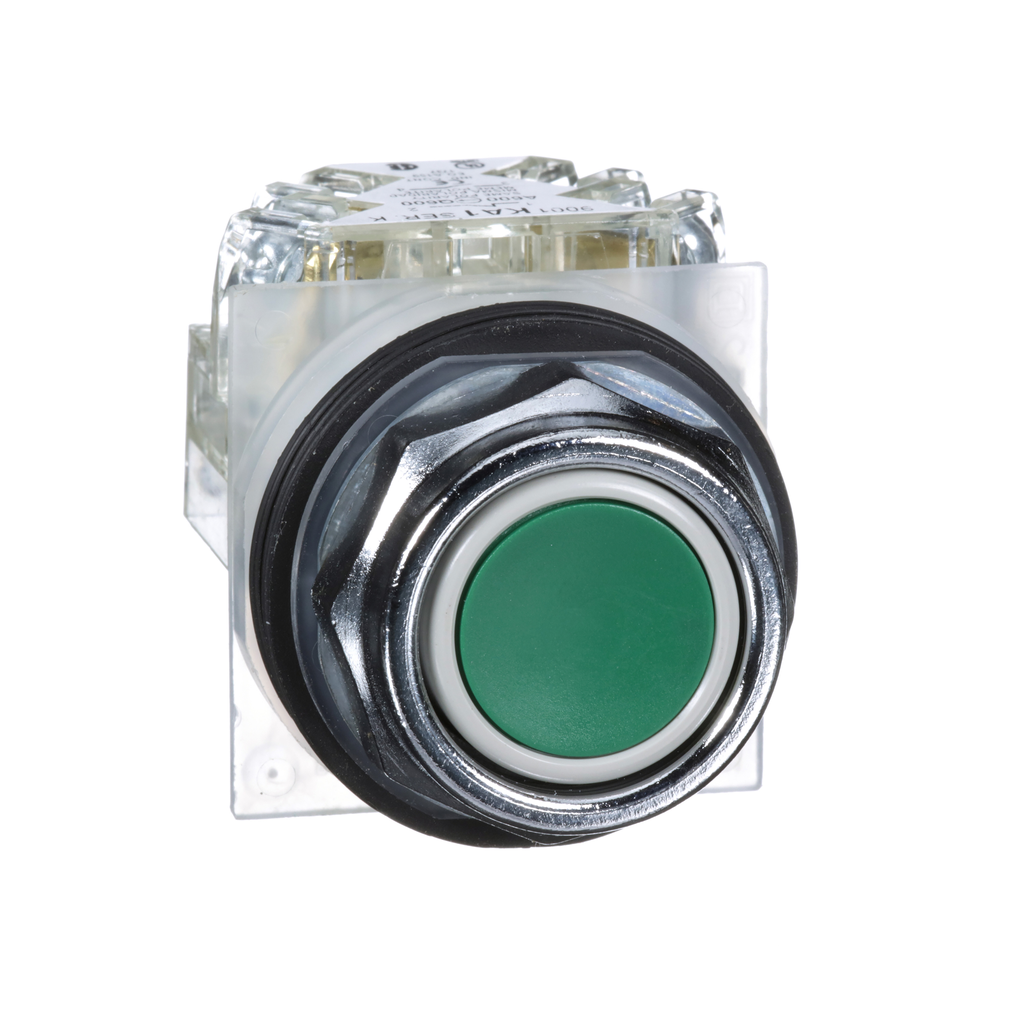

Schneider Electric 9001KR1GH13 Square D 30 mm 10 Amp 600 Volt Push Button

Product Description

Schneider Electric 9001KR1GH13 is a 30 mm push button designed for durability in industrial environments. This product features a robust metal base and is built to withstand heavy-duty applications. Notable for its long-term reliability, the 9001KR1GH13 is self-grounding and does not require additional wiring, making it easy to install. It conforms to numerous safety standards, including IEC and UL, ensuring compliance in various sectors.

• Rated for 10 Amps and 600 Volts
• IP66 and NEMA 4 rated for dust and water resistance
• Offers multiple function options including emergency stop and selector switches

Product Highlights

This push button is ideal for diverse applications, including automotive, machine tools, and food processing.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: 9001KR1GH13
• Voltage: 600 Volt
• Amperage: 10 Amp
• Height: 45 mm
• Width: 48 mm
• Weight: 0.27 lb
• Actuator: Standard pushbutton
• Environmental Conditions: Water tight, dust tight, and oil tight
