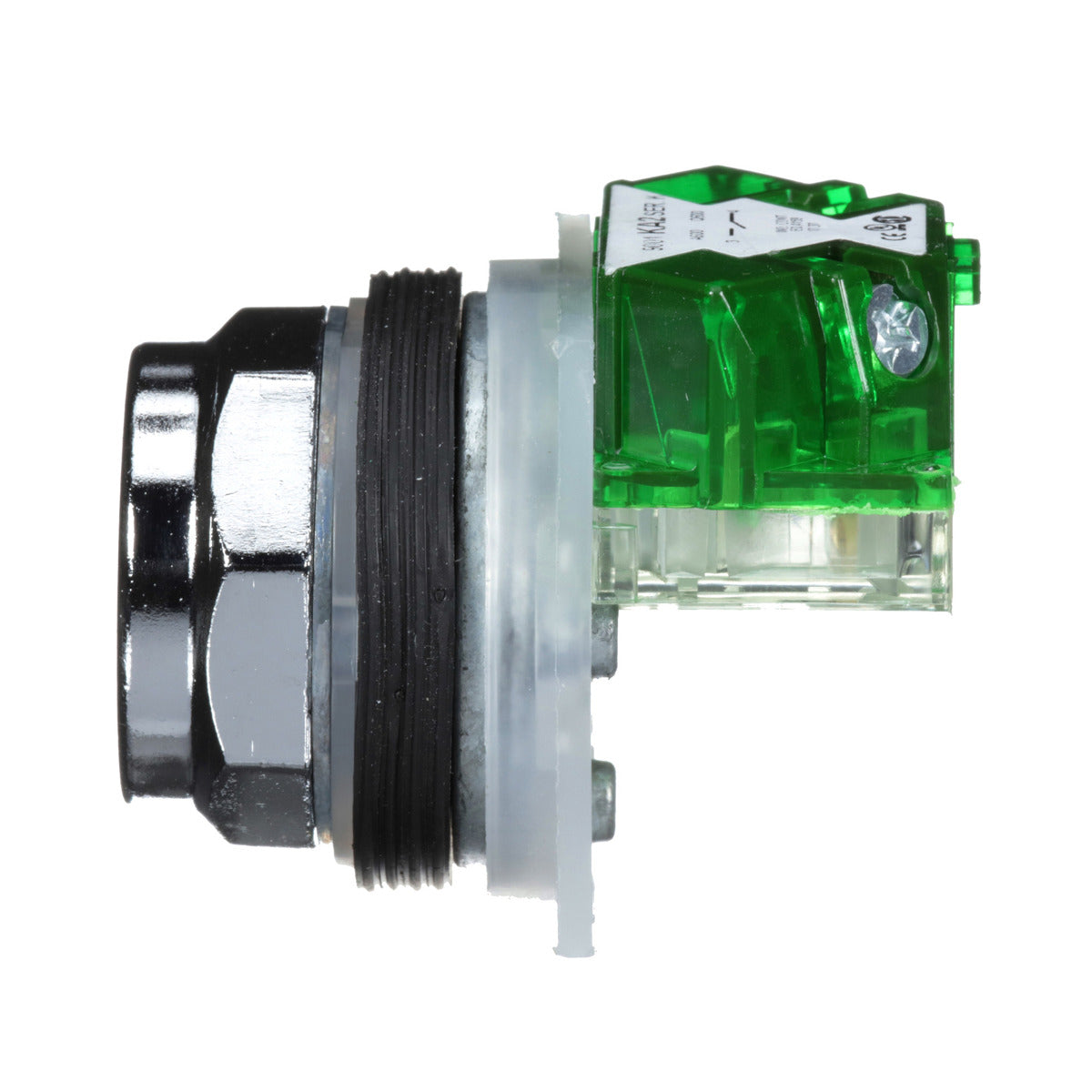

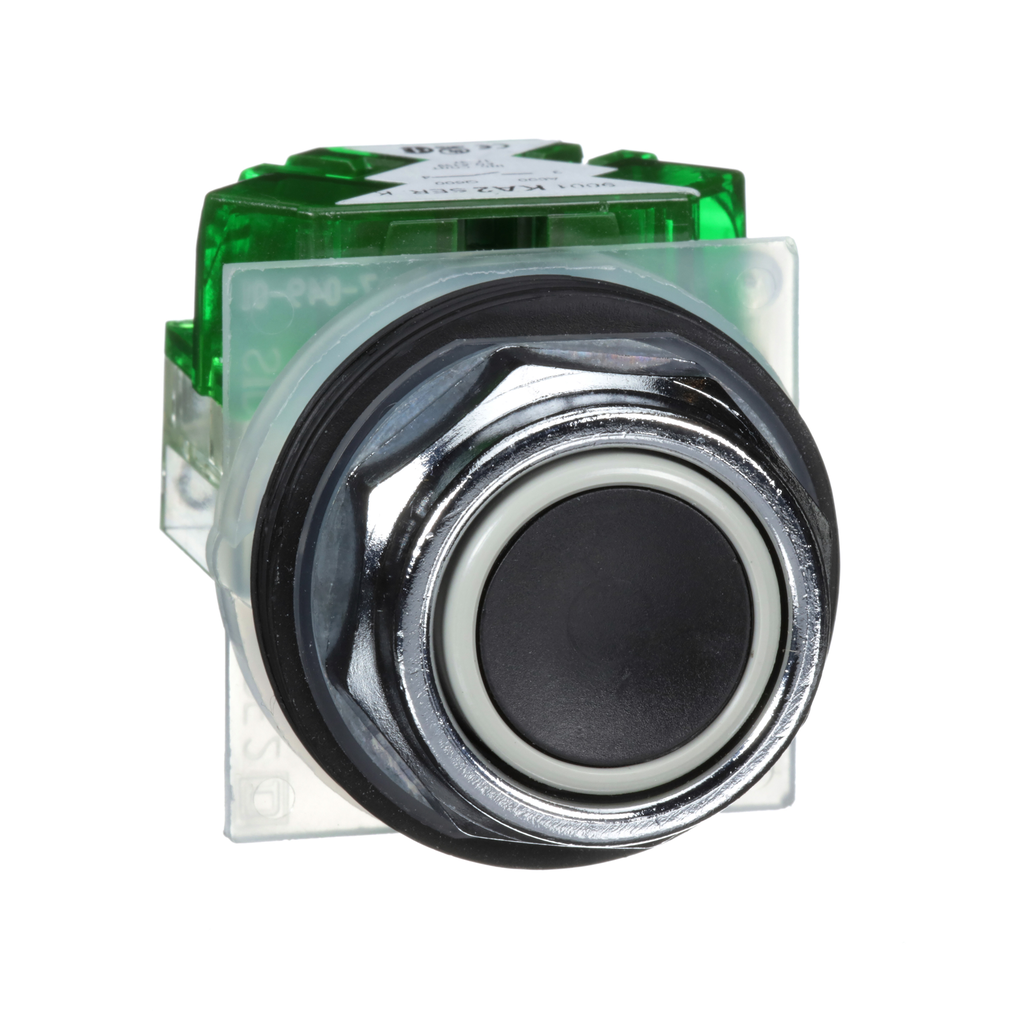

Schneider Electric 9001KR1BH5 Momentary 30 mm Push Button

Product Description

Schneider Electric offers the model 9001KR1BH5, a momentary push button designed for heavy-duty industrial settings. This operator features a robust metal base, ensuring long-term reliability. The push button is part of a versatile series that includes various operators like emergency stop buttons and selector switches. The ease of installation is enhanced by its automatic self-grounding capability, which requires no extra wiring. The push button adheres to numerous safety and quality standards.

• Rated for 600 volts and 10 amps.
• IP 66 and NEMA 4 rated for dust and waterproof applications.
• Fits in standard 30 mm mounting holes.

Product Highlights

This 30 mm push button is ideal for applications in automotive, industrial, and material handling sectors. Its construction makes it suitable for use in harsh environments.

Product Information

Standard Information

• Catalog Number: 9001KR1BH5
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 600 volt
• Amperage: 10 amp
• Dimensions: Width 48 mm, Height 45 mm
• Material: Metal bezel
• Operating Temperature: -25 to 70 degrees C
• Contact Configuration: 1 NO
• Enclosure Rating: IP 66, NEMA 4
• Country of Origin: Mexico
