Schneider Electric 9001KR16H13 Emergency Stop Push Button 240 VAC 1NO 1NC

Product Description

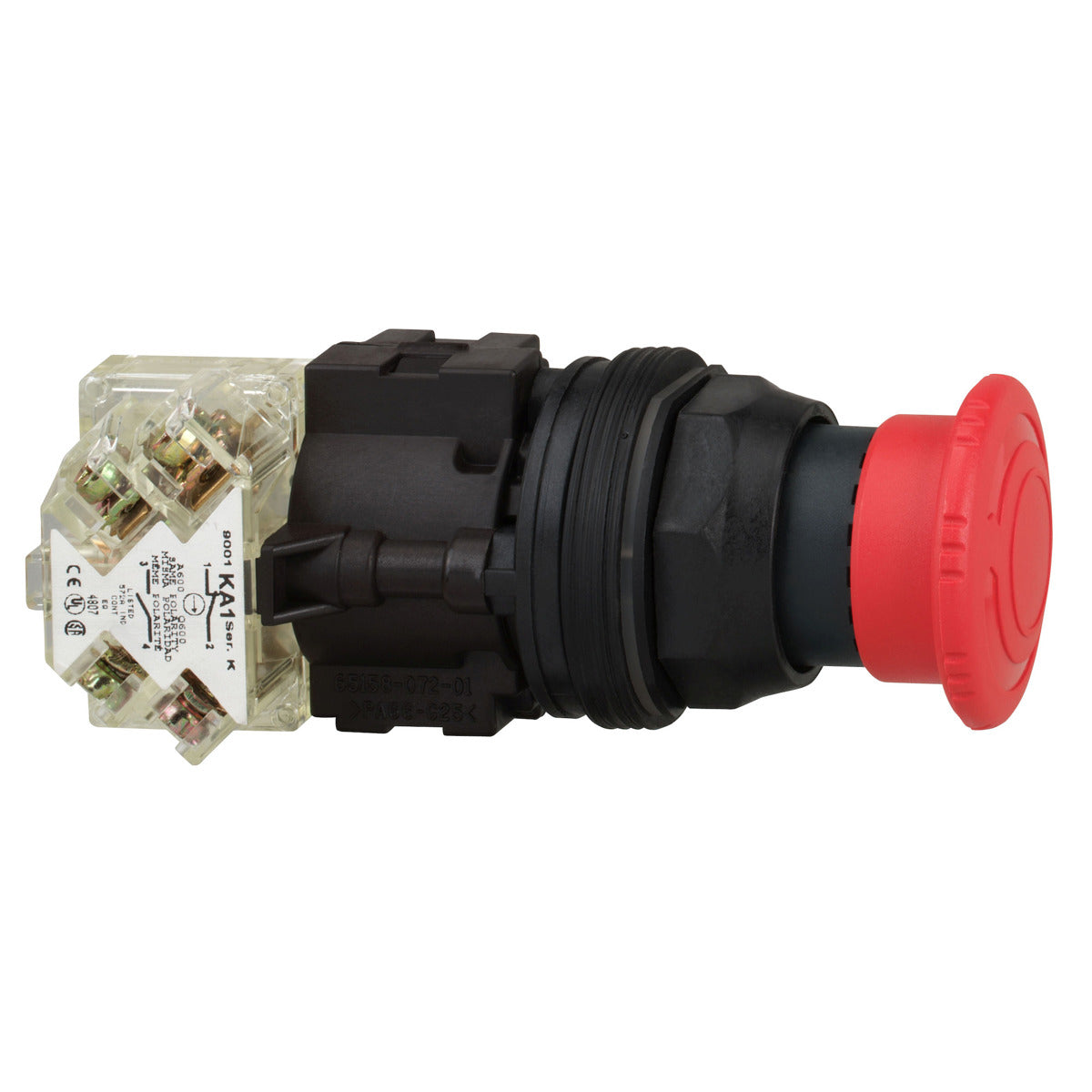

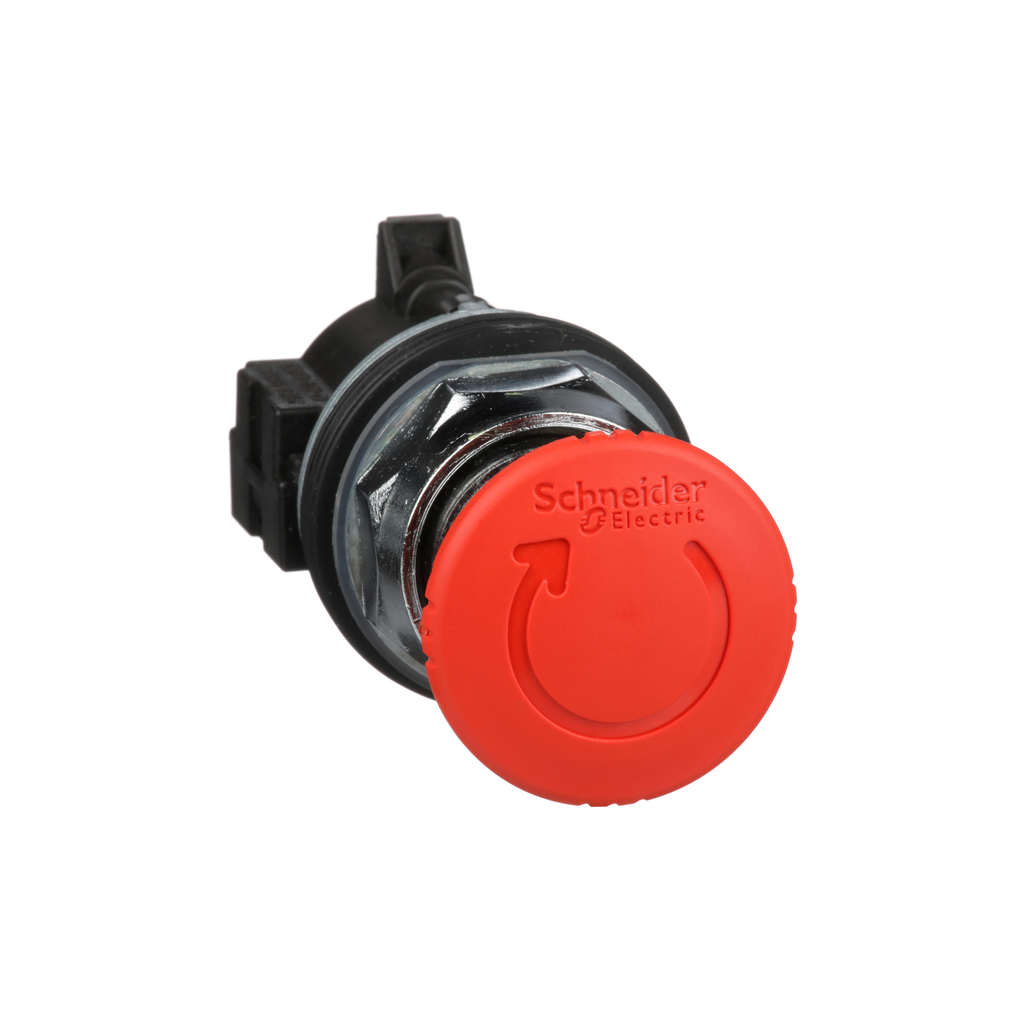

The Schneider Electric 9001KR16H13 is a 30 millimeter, 240 VAC maintained push button with a red lens designed for emergency stop functions. This push button features a latched turn-to-release mechanism with a modular design.

• Two position actuator with 1 normally open and 1 normally closed contact.
• Impact resistant, dust resistant, and water resistant with an IP66 rating.
• Easy installation in standard 30 millimeter cutouts with screw-clamp connections.

Product Highlights

This push button is ideal for emergency stop applications in industrial environments. Its prominent mushroom shape is visually distinguishable from a distance, enhancing safety.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: 9001KR16H13
• Voltage: 600 Volt
• Amperage: 10 Amp
• Enclosure: NEMA 1/2/3/3R/4/6/12/13
• Country of Origin: Mexico
• Weight: 0.31 lb
• Operating Temperature: -25 to 70 degrees Celsius
• Storage Temperature: -40 to 70 degrees Celsius
