Schneider Electric 9001KR11U Push-button Switch 30mm Maintained

Product Description

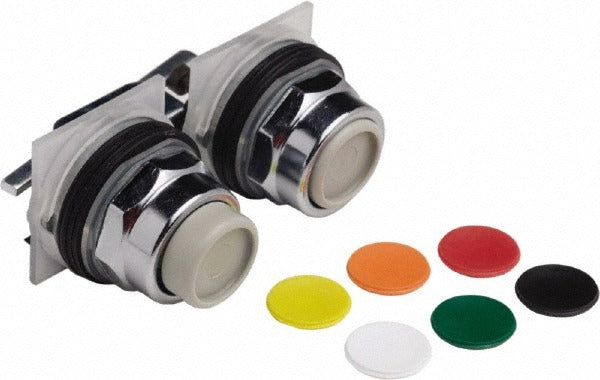

The SCHNEIDER ELECTRIC 9001KR11U is a maintained-action push-button switch designed for industrial control panel and machine operator interface applications. The switch features a 30 mm mounting hole diameter and an extended round push button available in black, green, orange, red, white, and yellow. Maintained operation means the switch holds its position after actuation until deliberately reset, making it suitable for on/off or start/stop control circuits. Built to NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings, it delivers dusttight, oiltight, and watertight protection in demanding environments. Licensed electricians and industrial maintenance technicians are the typical installers.

This switch is suited for residential, commercial, and light industrial control applications where a durable operator interface is required. Its weatherproof construction qualifies it for both indoor and outdoor enclosures, including washdown and outdoor-rated panels. The extended round actuator style provides clear tactile feedback and easy identification across multiple color options, which supports multi-function control station builds where color-coded operator buttons are needed for safety or process differentiation.

Key Features

• 30 mm mounting hole diameter fits standard 30 mm control station cutouts
• Maintained (MA) operation holds switch state after actuation
• Extended round actuator available in six colors: black, green, orange, red, white, and yellow
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated — dusttight, oiltight, and watertight
• Meets CE, CSA LR25490 Class 3211 03, and UL Listed (File No. E42259 CCN NKCR) standards
• Utilization Category AC-15 and DC-13 rated for inductive control circuit loads

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 30 mm industrial control stations and operator interface enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control circuit before removing or installing any operator switch. Verify that the enclosure NEMA rating matches the installation environment before mounting. Confirm the actuator color selection meets local safety or process color-coding requirements before finalizing installation.
